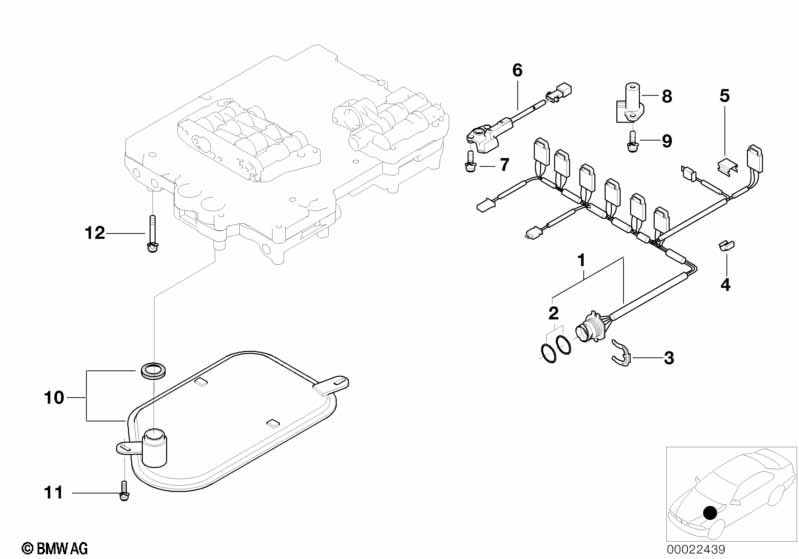

3' E46 320Ci A5S325Z wiring/oil filt./pulse generator
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness with temperature sensor | 1 | 03/2005 | 24341423873 | $197.08 | +core | |||
| 02 | O-ring | 2 | 03/2005 | 24341421736 | $2.90 | ||||
| 03 | Fixing clamp | 1 | 03/2005 | 24341422682 | $2.00 | ||||
| 04 | Cable clamp | 1 | 03/2005 | 24341215612 | $1.61 | ||||
| 05 | Clamp | 1 | 03/2005 | 24341423371 | $1.70 | ||||
| 06 | Speed sensor | 1 | 03/2005 | 24341423874 | $133.68 | +core | |||
| 07 | Torx bolt | M6X15 | 1 | 03/2005 | 24101421152 | $1.12 | |||
| 08 | Pulse generator | 1 | 03/2005 | 24341219316 | $50.64 | +core | |||
| 09 | Torx bolt | M5X18 | 2 | 03/2005 | 24347518839 | $1.70 | |||
| 10 | Oil filter | 1 | 03/2005 | 24341423376 | $33.05 | ||||
| 11 | Torx screw | M5X12 | 2 | 03/2005 | 24347509515 | $1.80 | |||
| 12 | Torx screw | M6X59 | 14 | 03/2005 | 24347509514 | $1.80 |
Notes
- +core = plus core charge (possibility of a return of the old part)
