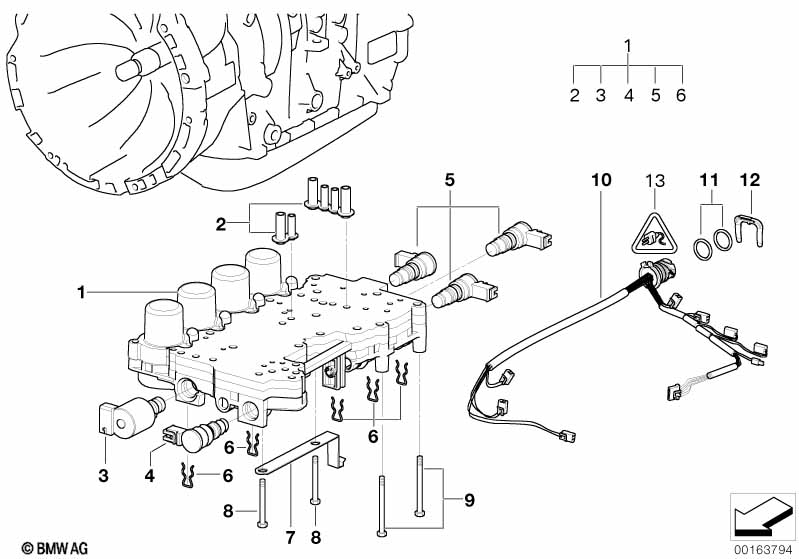

3' E46 320Ci A5S360R/390R ctrl unit with mount.parts
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | RP set switch device | 1 | 03/2005 | 24307527088 | $1628.73 | ||||
| 02 | Part not available separately | 1 | 00000000000 | ||||||
| 03 | Pressure regulator, main pressure | 1 | 03/2005 | 24321423988 | $101.37 | ||||
| 04 | Pressure regulator,convert.lockup clutch | 1 | 03/2005 | 24327532013 | $66.86 | ||||
| 05 | Solenoid valve On/Off | 3 | 03/2005 | 24337504753 | $51.85 | ||||
| 06 | Clamp | 3 | 03/2005 | 24331423599 | $1.67 | ||||
| 08 | Torx screw | M6X50-8.8 | 8 | 03/2005 | 24351423964 | $1.32 | |||
| 09 | Hex bolt | 2 | 03/2005 | 24521423596 | $1.54 | ||||
| 10 | Wiring harness with temperature sensor | 1 | 03/2005 | 24367551877 | $183.79 | ||||
| 11 | O-ring set | 1 | 03/2005 | 24101423176 | $6.49 | ENDED | |||
| 12 | Fixing clamp | 1 | 03/2005 | 12521732375 | $1.90 | ||||
| 13 | Plug housing | 1 | 03/2005 | 12521433183 | $13.40 | ||||
| only in conjunction with | |||||||||
| -- | Circular connector | 0,5- 1,0 MM² | 20 | 03/2005 | 61130007656 | $4.75 | |||
Notes
- ENDED = the part has been discontinued (no longer available).
