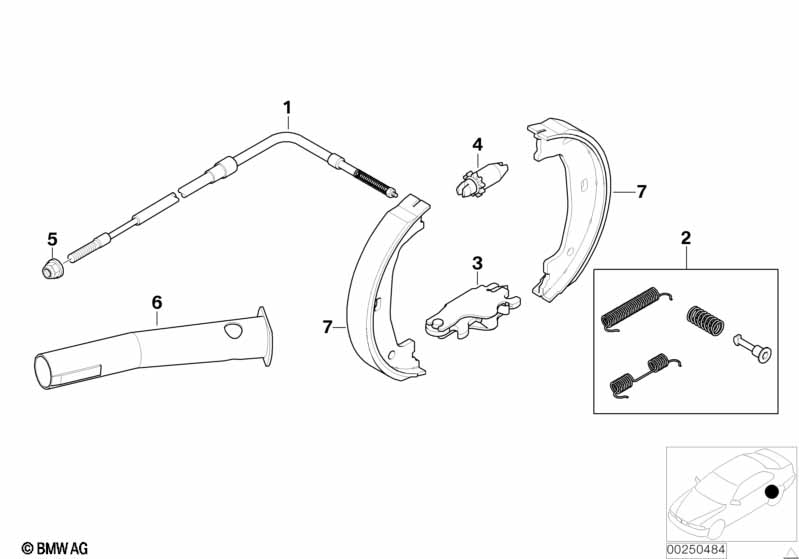

3' E46 320Ci Parking brake/brake shoes
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | The following components are vital and mandatory for brake shoe replacements: spring repair kit brake shoe expander adjustment screw |
||||||||
| 01 | Right hand brake bowden cable | 1 | 34411165020 | $25.34 | |||||
| 01 | Left hand brake bowden cable | 1 | 34411165021 | $25.34 | |||||
| 02 | Repair kit springs | 1 | 34410410823 | $15.52 | |||||
| 03 | Expanding lock | 2 | 34416851439 | ||||||
| 04 | Adjusting screw | 2 | 34416851438 | ||||||
| 05 | Self-locking hex nut | M6 | 2 | 07146778500 | $0.47 | ||||
| 06 | Guide bush | 2 | 34411164583 | $0.68 | |||||
| Important! Value Line Kit is available. |
|||||||||
| 07 | Repair kit brake shoe asbestos-free | 1 | 34416761291 | $63.73 | |||||
