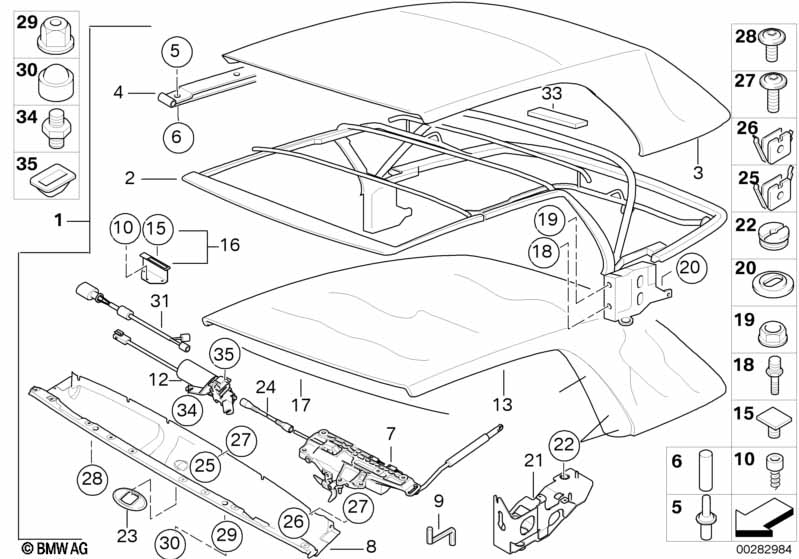

3' E46 320Ci Folding top
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Softtop, electromech. all-autom. |
S399A=Yes |
|||||||
| 01 | EH Folding top | DUNKELGRÜN | 1 | 09/2001 | 54348243265 | $6327.72 | ENDED, +core | ||
| 01 | EH Folding top | ANTHRAZIT | 1 | 54347146359 | $7919.30 | ENDED | |||
| 01 | EH Folding top | DUNKELBLAU | 1 | 54347146360 | $7876.16 | ||||
| 02 | Folding-top frame | 1 | 54347030542 | $3036.59 | |||||
| 03 | Cover, folding top | DUNKELGRÜN | 1 | 09/2001 | 54318243263 | $2380.97 | ENDED | ||
| 03 | Cover, folding top | SCHWARZ | 1 | 54318229839 | $2380.97 | ||||
| 03 | Cover, folding top | DUNKELBLAU | 1 | 54318243262 | $2380.97 | ||||
| 04 | Left tension belt | 1 | 54318268975 | $107.28 | |||||
| 04 | Right tension belt | 1 | 54318268976 | $107.28 | |||||
| 05 | Expanding rivet | 2 | 54317043548 | $1.53 | |||||
| 06 | Guide pin | 2 | 54317043547 | $2.52 | |||||
| 07 | Left folding top lock | 1 | 54347031361 | $394.24 | |||||
| 07 | Right folding top lock | 1 | 54347031362 | $394.24 | |||||
| 08 | Windshield frame cover | 1 | 54348263820 | $227.87 | |||||
| 09 | Emergency operation crank | L 45X35,SW4 | 1 | 67618370817 | $1.77 | ||||
| 10 | Fillister-head screw | M6X14 | 6 | 08/2006 | 07119900529 | $0.60 | ENDED | ||
| 10 | Fillister-head screw | M6X14-8.8 | 6 | 07119906172 | |||||
| 11 | Cover | 1 | 06/2000 | 54347003315 | $10.71 | ENDED | |||
| 11 | Finisher, emergency actuating unit | SCHWARZ | 1 | 54217064089 | $13.16 | ||||
| 12 | Drive, locking mechanism | VORN | 1 | 67618370816 | $244.33 | ||||
| 13 | Headlining cloth | ANTHRAZIT | 1 | 54318229821 | $735.00 | ||||
| 14 | Fillister-head screw | M4X27 | 1 | 54318183750 | $4.88 | ||||
| 15 | Stopper | SCHWARZ | 2 | 54348228951 | $5.12 | ||||
| 16 | Base plate left | 1 | 54318204285 | $118.64 | |||||
| 16 | Base plate right | 1 | 54318204286 | $118.64 | |||||
| 17 | Supporting ledge | 1 | 54317043549 | $54.38 | |||||
| 18 | Adjusting screw | 2 | 54317046636 | $4.21 | |||||
| 19 | Hex nut with plate | AM8-ZNS | 16 | 07129900644 | $0.51 | ENDED | |||
| 19 | Hex nut with plate | M8-ZNS3 | 16 | 07129904862 | $1.12 | ||||
| 20 | Washer | 6 | 54318253827 | $2.23 | |||||
| 21 | Console left | 1 | 54318229815 | $113.20 | |||||
| 21 | Console right | 1 | 54318229816 | $113.20 | |||||
| 22 | Hollow bolt | 6 | 54318253828 | $7.54 | |||||
| 23 | Emergency mechanism cover | 1 | 54348268983 | $5.26 | |||||
| 24 | Shaft | LINKS | 1 | 54347042479 | $30.80 | ||||
| 24 | Shaft | RECHTS | 1 | 54347042480 | $30.80 | ||||
| 25 | Clip center | 4 | 54317045700 | $1.91 | |||||
| 26 | Clip exterior | LINKS | 2 | 54317046643 | $5.05 | ||||
| 26 | Clip exterior | RECHTS | 1 | 54317046644 | $5.05 | ||||
| 27 | Mounting screw | 3X16 | 6 | 54317043555 | $0.98 | ||||
| 28 | Fillister head screw | M4X10 | 9 | 54317043554 | $1.67 | ||||
| 29 | Combination nut | M4 | 2 | 54317043556 | $1.67 | ||||
| 30 | Protection cap | 2 | 54317043557 | $1.81 | |||||
| 31 | Microswitch | 1 | 54348263825 | $59.38 | |||||
| 32 | Ball pin, bottom | 1 | 54348268981 | $4.88 | |||||
| 32 | Ball pin, top | 1 | 54348268982 | $4.56 | |||||
| 33 | Lamination, tension strap | 1 | 54317056103 | ||||||
| 34 | Rubber Mounting | M6X10 | 2 | 67618370818 | $7.77 | ||||
| 35 | Rubber buffer | 1 | 54347127164 | $1.19 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
