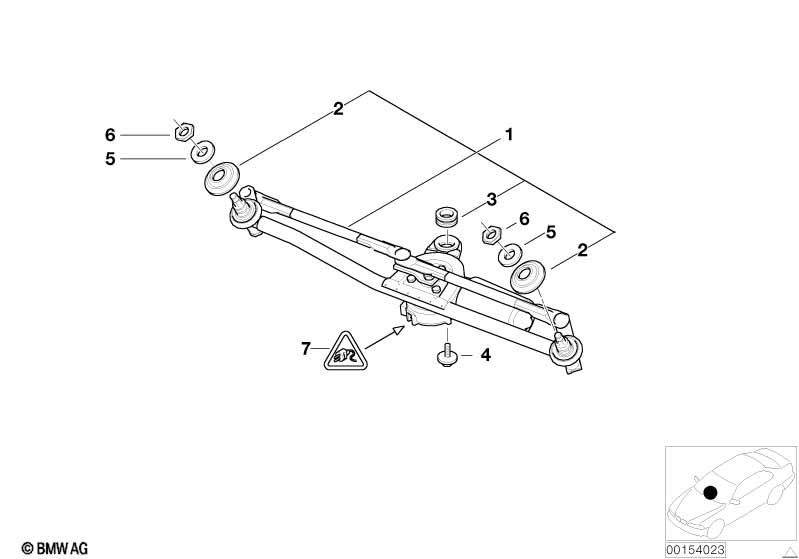

3' E46 320Ci windshield wiper system, LHD
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Linkage for wiper system with motor | 1 | 61617071693 | $304.88 | |||||
| 02 | Upper damper ring | 2 | 61618391954 | $1.83 | |||||
| 03 | Damper ring | 2 | 61618391956 | $1.60 | |||||
| 04 | Hex bolt with washer | 1 | 61618391955 | $0.88 | |||||
| 05 | Damping washer upper part | 2 | 61613428078 | ||||||
| 06 | Hex nut | M20X1 | 2 | 01/2002 | 61628351869 | $0.77 | |||
| 06 | Hex nut | 2 | 01/2002 | 07147116137 | $1.09 | ||||
| 07 | Universal socket housing uncoded | 4 POL. | 1 | 61136984750 | $5.03 | ||||
| only in conjunction with | |||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 4 | 61130056965 | |||||
| 07 | Rep. kit for socket housing | 4 POL. | 1 | 61132359996 | |||||
