3' E46 325Ci Fan shroud

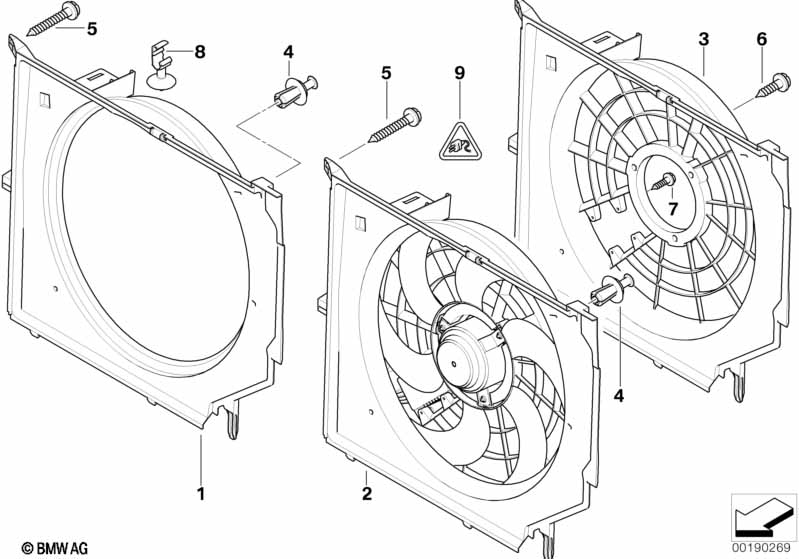

Fan shroud
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Automatic transmission
and
Hot-climate version

S205A=Yes

S823A=Yes
01 Fan shroud 1 17111436259 $30.63
For vehicles with
Automatic transmission
and
Automatic air conditioning
and
Air conditioning

S205A=Yes

S534A=Yes

S530A=No
01 Fan shroud 1 17111436259 $30.63
For vehicles with
Automatic transmission
and
Automatic air conditioning
and
Air conditioning

S205A=Yes

S534A=No

S530A=Yes
01 Fan shroud 1 17111436259 $30.63
02 Fan housing with fan 390W 1 17117561757 $477.38
only applies to Bosch
03 Fan shroud 1 11/1999 17117511168 $103.40
ONLY APPLIES TO SIEMENS
03 Fan shroud 1 11/1999 17117507604 $103.40 +core
04 Expanding rivet 1 17111712963 $0.27
05 Screw self-tapping D6X40 ZNS3 1 17117536972 $1.12
06 Fillister-head screw M5X16 3 11/1999 17427612897
only applies to
-- Fan housing with fan 390W X 11/1999 17111437713 $418.50 ENDED
-- Fan shroud X 11/1999 17117504923 $87.50 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
