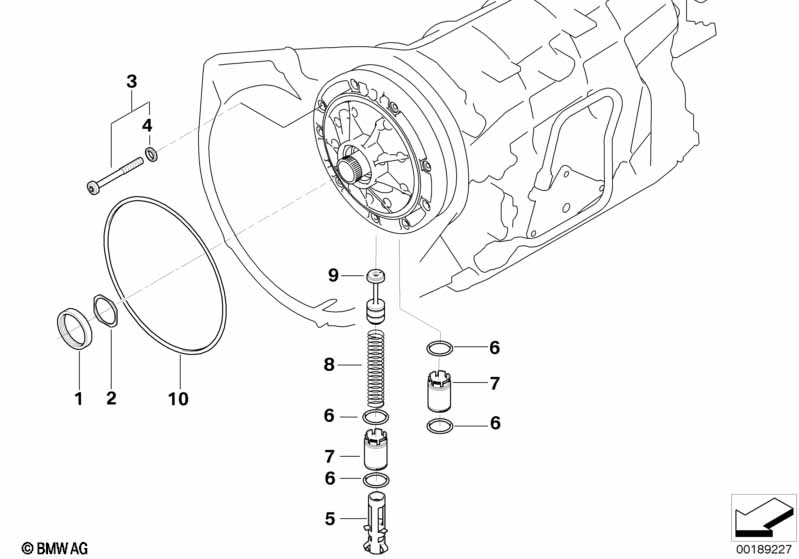

3' E46 330Ci A5S325Z lubrication system

A5S325Z lubrication system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Shaft seal 45X58X7 1 03/2005 24201423382 $14.88
For vehicles with
National version japan

L807A=Yes
01 Shaft seal 45X58X7 1 24201423382 $14.88
02 Support 1 03/2005 24201423381 $2.32
For vehicles with
National version japan

L807A=Yes
02 Support 1 24201423381 $2.32
03 Torx bolt 9 03/2005 24201423383 $3.05
For vehicles with
National version japan

L807A=Yes
03 Torx bolt 9 24201423383 $3.05
04 Gasket ring 9 03/2005 24311219165 $1.31
For vehicles with
National version japan

L807A=Yes
04 Gasket ring 9 24311219165 $1.31
05 Sleeve 1 03/2005 24201423386 $2.82
For vehicles with
National version japan

L807A=Yes
05 Sleeve 1 24201423386 $2.82
06 O-ring 4 03/2005 24201423387 $1.77
For vehicles with
National version japan

L807A=Yes
06 O-ring 4 24201423387 $1.77
07 Pipe 2 03/2005 24201423388 $9.08
For vehicles with
National version japan

L807A=Yes
07 Pipe 2 24201423388 $9.08
08 Compression spring 1 03/2005 24201423385 $4.17
For vehicles with
National version japan

L807A=Yes
08 Compression spring 1 24201423385 $4.17
09 Piston 1 03/2005 24201423384 $18.49
For vehicles with
National version japan

L807A=Yes
09 Piston 1 24201423384 $18.49
10 O-ring 210X3 1 03/2005 24311219166 $10.24
For vehicles with
National version japan

L807A=Yes
10 O-ring 210X3 1 24311219166 $10.24
