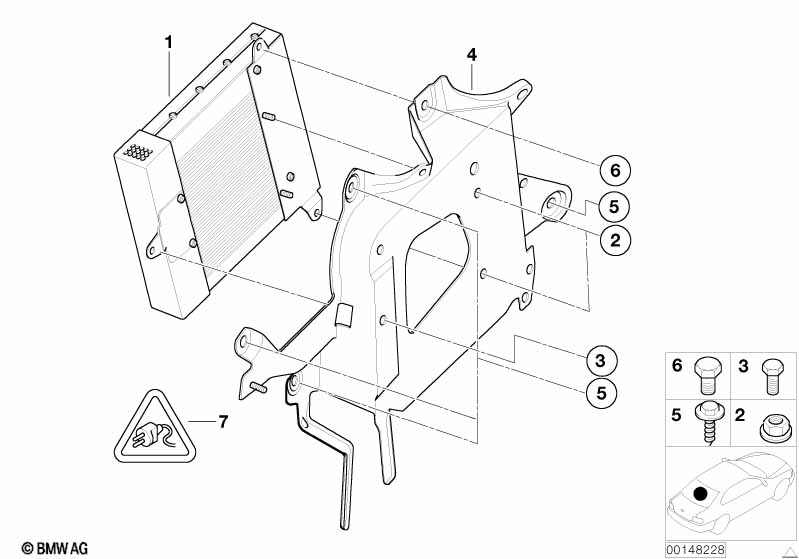

3' E46 330Ci amplifier/holder Harman Kardon hifi

amplifier/holder Harman Kardon hifi
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Amplifier Hifi Harman Kardon 1 65128380068 $789.57 +core
02 Hex nut with plate AM6-ZNS 2 07129900681 $0.35 ENDED
02 Hex nut with plate AM6-8-ZNNIV SI 2 07129904553 $0.64
03 Hex bolt with washer M6X10-Z1 1 07119915041 $0.25
04 Holder amplifier 1 65138380118 $21.15
05 Sheet metal screw ST4,8X16 4 07119901311 $0.25
06 Hex bolt 1 72128244969 $0.79
07 Covering cap 42 POL. 1 61138364862 $2.15
only in conjunction with
-- Contact bushing MQS with cable 0,2- 0,5 QMM X 61130005197 $1.65
-- Contact bushing MQS with cable 0,5-0,75 MM² AG X 61130056960
-- Socket contact ELO-Power 2,8x0,63 2,5-4,0 MM X 61136913612 $0.50
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² X 61138364832 $0.35
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN X 61138364834 $0.35
-- Socket housing, black 21 POL. 1 61138364882 $1.30
-- Socket housing, grey 21 POL. 1 61138364884 $1.30
-- Socket contact ELO-Power 2,8x0,63 0,35-0,5 MM² SN X 61138377162 $0.35
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
