3' E46 330Ci Body-side frame

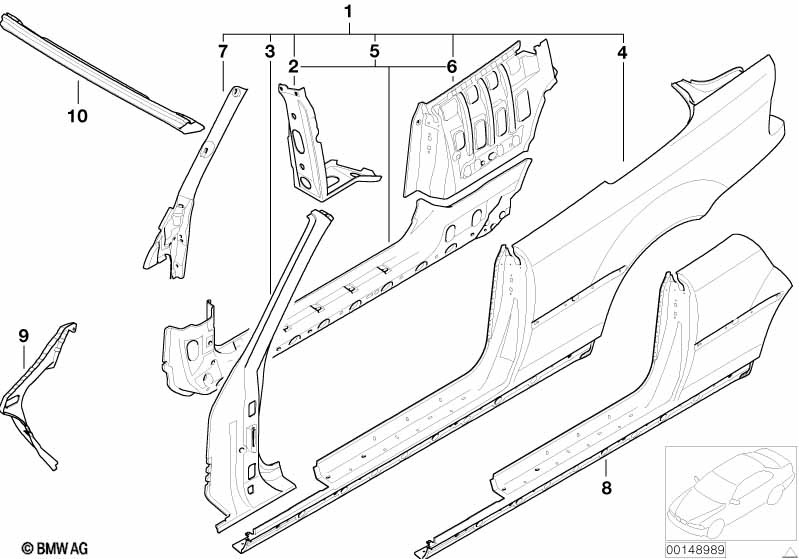

Body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please observe Repair Manual.
01 Body-side frame left 1 41357022591 $1222.00
only in conjunction with
-- Section of entrance left 1 41217022783 $449.84
01 Body-side frame right 1 41357022592 $1222.00
only in conjunction with
-- Section of entrance right 1 41217022784 $449.84
02 Top, B-column left 1 41218234681 $36.32
02 Top, B-column right 1 41218234682 $36.32
03 Left exterior column A 1 41217022019 $484.70
additionally required parts:
Door hinge
03 Column A exterior right 1 41217022020 $484.70
additionally required parts:
Door hinge
04 Left rear side panel 1 41357029221 $500.05
04 Right rear side panel 1 41357029222 $500.05
05 Left interior side frame 1 41217022021 $809.37
05 Right interior side frame 1 41217022022 $809.37
06 Reinforcement column B inside left 1 41217022589 $114.23
only in conjunction with
-- Top, B-column left 1 41218234681 $36.32
06 Reinforcement column B inside right 1 41217022590 $114.23
only in conjunction with
-- Top, B-column right 1 41218234682 $36.32
07 Reinforcement column A inside left 1 41327022025 $171.37
07 Reinforcement column A inside right 1 41327022026 $171.37
08 Section of entrance left 1 41217022783 $449.84
08 Section of entrance right 1 41217022784 $449.84
09 Connect.plate f.left side panel frame 1 41218228243 $55.70
09 Connect.plate f.right side panel frame 1 41218228244 $55.70
10 Upper apron 1 41327020737 $120.59
