3' E46 330Ci Single components for body-side frame

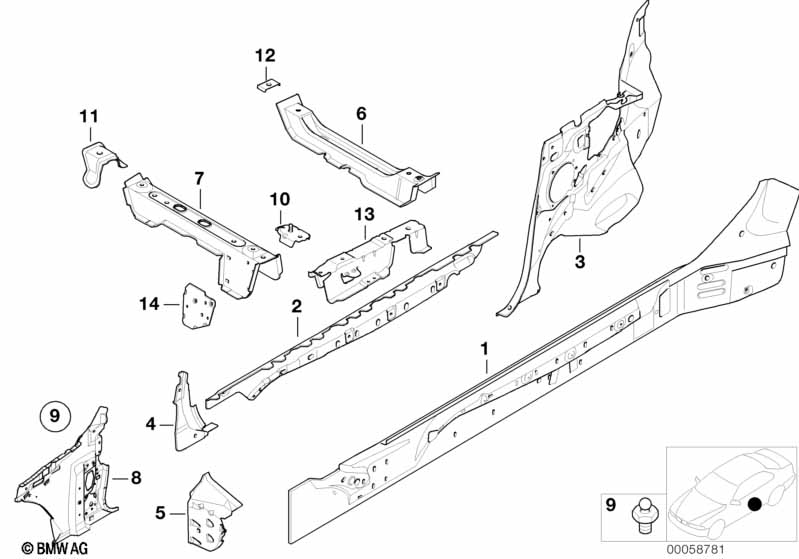

Single components for body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left side member 1 41117001927 $112.49
01 Right side member 1 41117001928 $112.49
02 Top, side member, left 1 41117011521 $108.79
02 Top, side member, right 1 41117011522 $108.79
03 Interior left column B 1 41007022003 $153.25
03 Column B inside right 1 41007022004 $153.25
04 Reinforcement column A inside left 1 41117011527 $10.70
04 Reinforcement column A inside right 1 41117011528 $10.70
05 Covering plate column front left 1 41217022409 $9.79
05 Covering plate column front right 1 41217022410 $9.79
06 Left rear seat console 1 41118233493 $43.41 ENDED
06 Right rear seat console 1 41118233494 $43.41 ENDED
07 Left front seat console 1 41118239493 $43.41
07 Right front seat console 1 41118239494 $43.41 ENDED
08 Left interior column A 1 41138230551 $110.58
08 Right interior column A 1 41138245120 $110.58
09 Ball pin M8X13,5MM 2 51247010221 $2.03
10 Reinforcement, seat console,exter. front 2 41117011526 $3.40
11 Reinforce.,seat console,inter.front left 1 41117011523 $2.94
11 Reinforce.,seat console,inter.front rght 1 41117011524 $3.23
12 Reinforcement, seat console, rear 4 41117011525 $2.33
13 Side member, seat console, left 1 41117011517 $35.38
13 Side member, seat console, right 1 41117011518 $35.38
14 Support, seat console, left 1 41117011627 $7.63
14 Support, seat console, right 1 41117011628 $7.52
Notes
  • ENDED = the part has been discontinued (no longer available).
