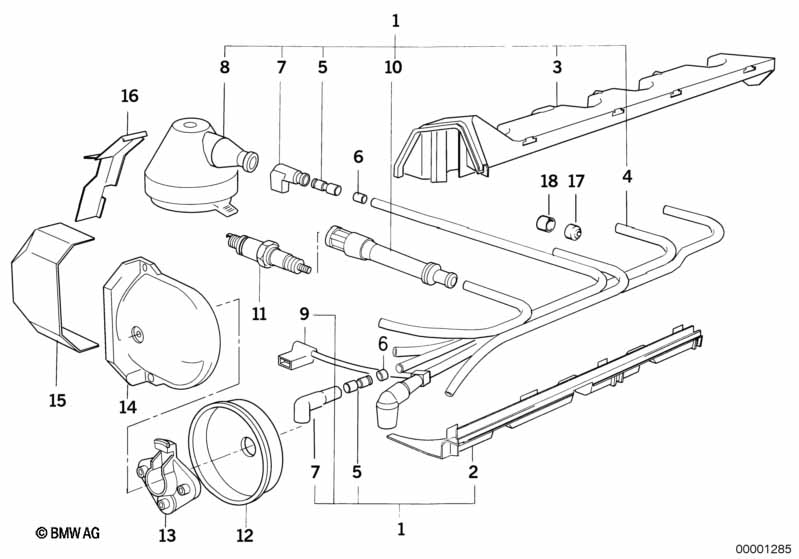

3' E36 316i ignition wiring/sparkplug

ignition wiring/sparkplug
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ignition harness with marten repeller 1 12121734098 $305.95 EBA 9784599
02 Guide tube lower part 1 12121727688
03 Guide tube upper part 1 12121727687
04 Ignition wire X 12121705675 $11.91 +core
05 Circular connector X 12121705656 $1.73 +core
06 Identification ring ZYL.1 1 12121706186 $0.60
06 Identification ring ZYL.2 1 12121706187 $0.60
06 Identification ring ZYL.3 1 12121706188 $0.60
06 Identification ring ZYL.4 1 12121706189 $0.60
07 Suppressing socket 1000-OHM 5 01/1994 12121289825 $9.89 ENDED
07 Suppressing socket 5 12121289828
ONLY APPLIES TO MARTEN PROTECTED
08 Protection cap 1 12121727606
09 Pulse generator 1 12121734141 +core
10 Spark plug socket 5000-OHM 4 09/1997 12121710673 $17.31
11 Spark plug BOSCH F 7 LDCR 4 12129063428 $9.66
11 Spark plug NGK BKR 6 EK 4 12129064619 $9.66
Note SIT 12 05 98 (368)!
11 Spark plug, High Power 4 12120037607
11 Spark plug, High Power 4 12120037607
12 Cover 1 12111287718 $23.21
13 Rotor 1 12111715906
14 Distributor cap 1 12111734109 $129.52 ENDED
14 Distributor cap 1 12111727371
15 Protection cap 1 12121715497 $6.42
16 Holder 1 12121717641
ONLY APPLIES TO MARTEN PROTECTED
17 Marten repeller X 12121739479 $0.35
18 Insulation sleeve X 12121736142 $0.50
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
