3' E36 318i Outside mirror

Outside mirror

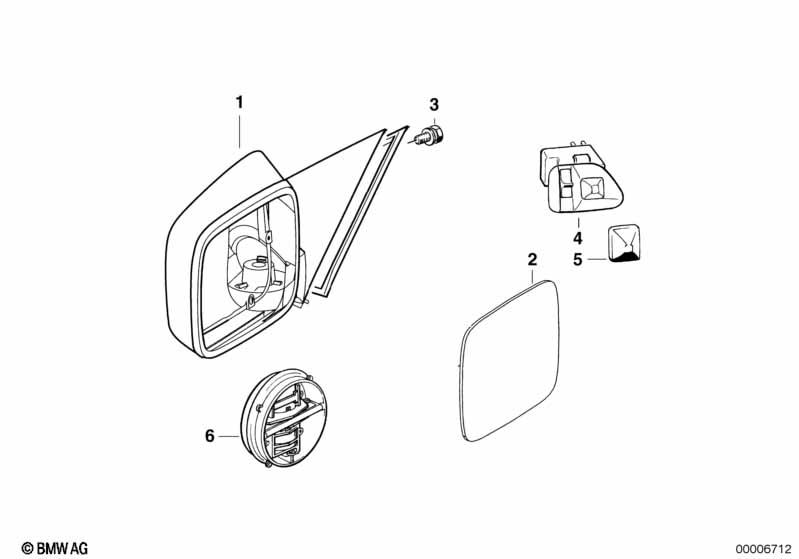

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Electr.exterior heatable mirror right 1 04/1994 51168184900 +core
only in conjunction with
01 Electr.exterior heatable mirror left 1 04/1994 51168184901 +core
only in conjunction with
-- Screw self-tapping M6X14 Z1 3 04/1994 51168220001 $3.81
ONLY APPLIES TO DRIVER'S SIDE
02 Mirror glas heated plane 1 04/1994 51168119710 $49.43
02 Mirror glas, heated, wide-angle 1 04/1994 51168119724 $79.52
ONLY APPLIES TO CO-DRIVERS SIDE
02 Mirror glas heated convex 1 04/1994 51168119711 $71.67
02 Mirror glas, heated, wide-angle 1 04/1994 51168119724 $79.52 EBA 9782537
03 Hex bolt with washer M6X10-Z1 6 04/1994 07119915041 $0.25
04 Mirror switch with change-over switch 1 04/1994 61311383467 $65.36
only in conjunction with
-- Cover 1 04/1994 61311387288
Notice:
Switch must be removed from the 'mirror
switch with position selector' and then
clipped into the 'cover.'
05 Button 1 04/1994 61311383335 $3.62
06 Drive 2 04/1994 51161394107 $56.07
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
