3' E36 318i Trailer hitch/electr.attaching parts

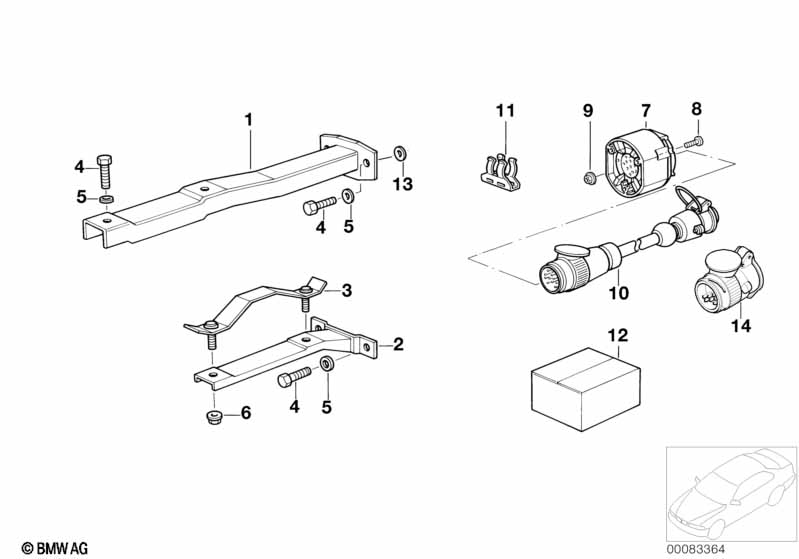

Trailer hitch/electr.attaching parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Mechanical mounting parts set WESTF./ORIS 1 02/1996 71601182655
01 Mechanical mounting parts set WESTF./ORIS 1 02/1996 71601094141 +core
04 Hex bolt M10X25-8.8 ZN X 04/1999 07119914114 $0.47 ENDED
04 Hex bolt M10X25 8.8 X 04/1999 07119902110 ENDED
04 Hex bolt M10X25 8.8 X 07119908569
05 Washer 10,5 X 07119931332
05 Washer A10,5X22 X 31111114348 $0.67
06 Collar nut M10 4 71601090370
06 Collar nut M10 4 71601138502
07 Plug-in socket 1 61131378999 $76.67
08 Countersunk screw M5 X 35 3 07119904582
09 Hex nut M5 3 07119904028 $0.36 ENDED
09 Hex nut M5-8-ZNNIV SI 3 07119905729
10 Adapter 1 61131382153 $145.08
11 Cable holder 1 61131382165
12 Mechanical mounting parts set WESTF./ORIS 1 02/1996 71601182655
12 Mechanical mounting parts set WESTF./ORIS 1 02/1996 71601094141 +core
13 Gasket ring 1 71601139942
14 Adapter 13 - 7 1 61136942997 $34.12
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
