3' E36 325td Intake manifold system-AGR

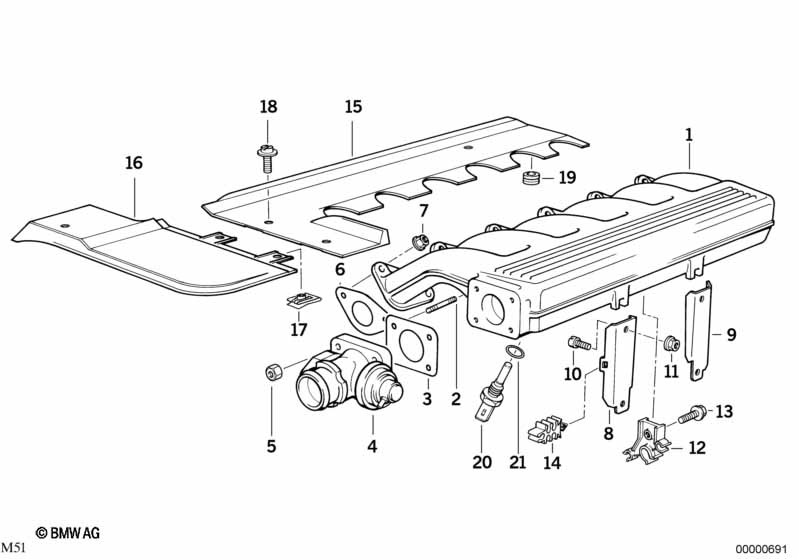

Intake manifold system-AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold 1 09/1993 01/1996 11612245025
02 Stud bolt M6X28-ZN 4 09/1993 01/1996 07129908111 $0.63
03 Gasket Asbestos Free 1 09/1993 01/1996 11712244899 $6.02
04 EGR-valve 1 09/1993 01/1996 11712246145
05 Hex nut BM6-8-ZNNIV SI 4 09/1993 01/1996 07129905411 $0.38
06 Gasket Asbestos Free 6 09/1993 01/1996 11612244391 $3.67 ENDED
06 Gasket Asbestos Free 6 09/1993 01/1996 11612244384
07 Hex nut wiht flange M8 X 09/1993 01/1996 11611713432 $0.43
08 Rod left 1 09/1993 01/1996 11612243643
09 Rod right 1 09/1993 01/1996 11612243642
10 Saucer-head screw M8X22 4 09/1993 01/1996 07119900438 ENDED
11 Hex nut wiht flange M8 4 09/1993 01/1996 11611713432 $0.43
12 Hose clamp 1 09/1993 01/1996 11612243626
13 Hex bolt with washer M8X18-Z1-ZNS3 1 09/1993 01/1996 07119902906 $0.65
14 Hose clamp 1 09/1993 01/1996 11612243914
15 Cover 1 09/1993 01/1996 11142245004
16 Air duct 1 09/1993 01/1996 11142244834
17 C-clip nut M6-ZNS3 2 09/1993 01/1996 51127070202 $1.00
18 Fillister-head screw M6X16 4 09/1993 01/1996 11142244595
19 Rubber grommet 12X2MM 1 09/1993 01/1996 31421236240 $1.93 ENDED
19 Rubber grommet 1 09/1993 01/1996 07147267586
20 Intake air temperature sensor 1 09/1993 01/1996 11613449116 $32.95
21 Gasket ring A12X15,5 AL 1 09/1993 01/1996 07119963130 $0.09
Notes
  • ENDED = the part has been discontinued (no longer available).
