3' E36 325td Intake manifold-supercharg.air duct/AGR

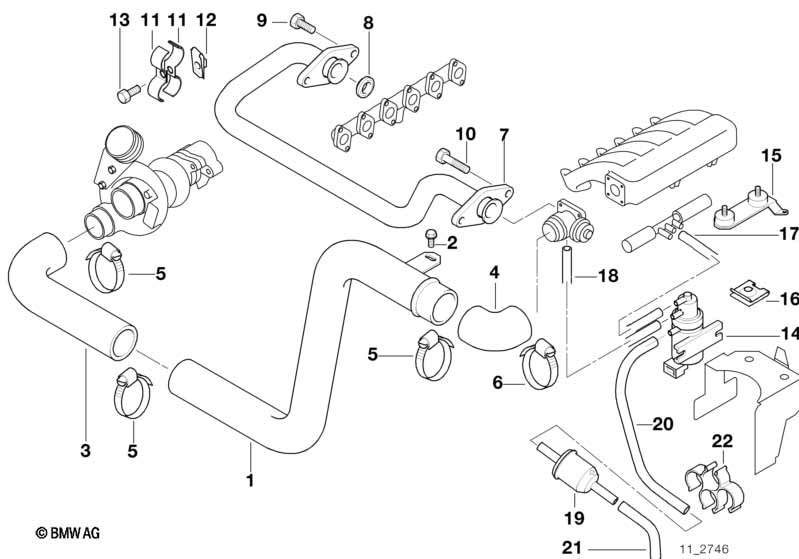

Intake manifold-supercharg.air duct/AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pressure pipe without exhaust gas valve 1 01/1996 11612246418
02 Hex bolt with washer M6X18-Z1 1 01/1996 07119913215 $0.20 ENDED
02 Hex bolt with washer M6X18-U1 1 01/1996 07119905399 $0.36
03 Pressure hose assy 1 01/1996 11612246412
04 Pressure hose assy 1 01/1996 11712244999
05 Hose clamp L=53-60MM 5 01/1996 07129952123 $1.78
06 Hose clamp L59-66 1 01/1996 07129952125 $1.64
07 Pipe 1 01/1996 11712245273
08 Air reducer 1 01/1996 11712246728
09 Hex bolt 2 01/1996 11712244540
10 Hex bolt M8X30-8.8-ZNS3 2 01/1996 07119902901 $0.25
11 Clamp 2 01/1996 11712245845
12 Nut holder M6 1 01/1996 11142244519 $1.95
13 Hex bolt with washer M6X18-Z1 1 01/1996 07119913215 $0.20 ENDED
13 Hex bolt with washer M6X18-U1 1 01/1996 07119905399 $0.36
14 Pressure converter 1 01/1996 11742246175 $108.53
15 Holder 1 01/1996 12522246405 ENDED
16 Hex nut with plate M5-8-ZNNIV SI 1 01/1996 07129904381 $0.64
17 Vacuum hose black 3,5X1,8 X 01/1996 11727545323 $14.82
18 Vacuum hose blue 3,3X1,8 X 01/1996 11747797082 $17.14
19 Air cleaner 1 01/1996 11742246020
20 Hose 4,5 X 9MM X 01/1996 11651289717
21 Hose X 01/1996 13512240681 $1.85
22 Hose clamp 1 01/1996 11721289406 $2.30
Notes
  • ENDED = the part has been discontinued (no longer available).
