3' E36 325td Engine Suspension / Damper

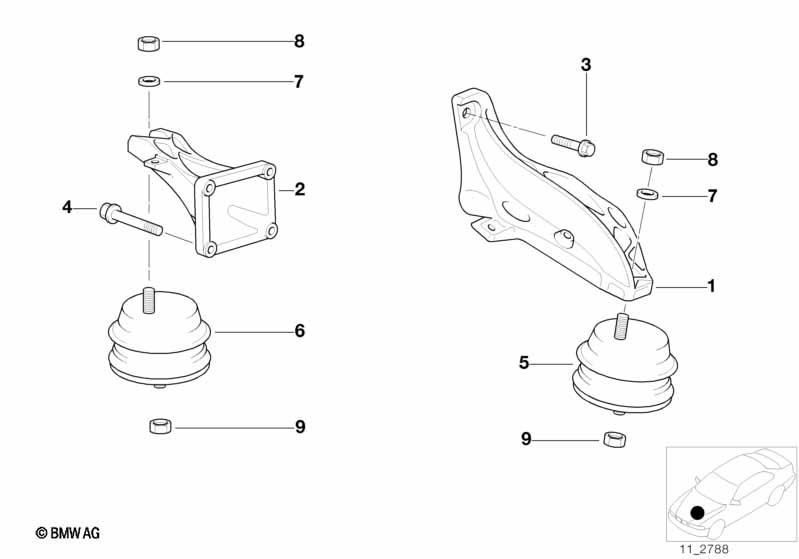

Engine Suspension / Damper
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting bracket left 1 11811139821
02 Supporting bracket right 1 03/1993 11811139822
02 Supporting bracket right 1 03/1993 11811141974 +core
03 Hex bolt with washer M8X26-Z1-ZNS3 3 05/1999 07119902897 $0.47 ENDED
03 Hex bolt with washer M8X26-10.9-ZNS3 3 07119904092
04 Hex bolt with washer M8X26-Z1-ZNS3 4 05/1999 07119902897 $0.47 ENDED
04 Hex bolt with washer M8X26-10.9-ZNS3 4 07119904092
05 Rubber Mounting 1 11811139883 $92.91
06 Rubber Mounting 1 11811139883 $92.91
07 Washer ZNS3 2 07119904198 $0.45
08 Self-locking hex nut M10 2 07129964672 $0.36
09 Hex nut AM10-8-ZNS3 2 05/1999 07129904864 $0.87 ENDED
09 Hex nut AM10-10-ZNS3 2 07129904865 $1.00
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
