3' E36 325td Short Engine

Short Engine
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Intake manifold alu

=Yes

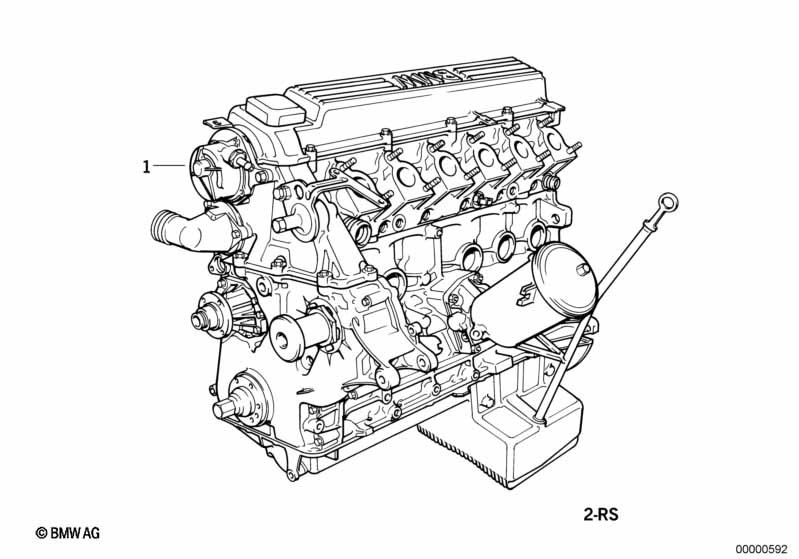

01 Exch. short engine (sales campaign) 256T1 1 09/1993 11000030380 ENDED, +core
01 Exch. short engine (sales campaign) 256T1 1 09/1993 01/1996 11000030381 ENDED, +core
01 Exch. short engine 256T1 1 09/1993 11009068613 ENDED, +core
only in conjunction with
-- Clamp p heater return pipe 1 09/1993 11712244907
-- Holder 1 09/1993 11282245419 +core
-- Hex bolt with washer M6X18-U1 1 09/1993 07119905399 $0.36
01 Exch. short engine 256T1 1 09/1993 01/1996 11009068613 ENDED, +core
only in conjunction with
-- Clamp p heater return pipe 1 09/1993 01/1996 11712244907
-- Hex bolt with washer M6X18-U1 1 09/1993 01/1996 07119905399 $0.36
For vehicles with
Plastic intake manifold

=Yes
01 Exch. short engine (sales campaign) 256T1 1 01/1996 11000030382 ENDED, +core
01 Exch. short engine 256T1 1 01/1996 11009069819 ENDED, +core
02 Set Mounting Parts Short Engine 1 01/1996 11009070054 ENDED
only in conjunction with
-- Gasket w/heat prot.shield asbestosfree 1 01/1996 11622247024 $27.16
02 Set Mounting Parts Short Engine 1 01/1996 11009070620
only in conjunction with
-- Gasket w/heat prot.shield asbestosfree 1 01/1996 11622247024 $27.16
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
