3' E36 325td Exhaust manifold

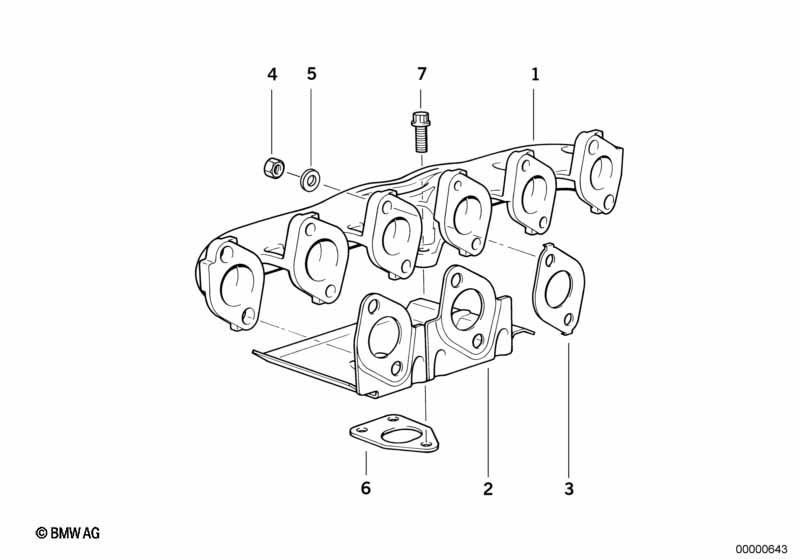

Exhaust manifold
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Catalytic converter

=No
01 Exhaust manifold 1 01/1996 11622243142
For vehicles with
Catalytic converter
or
Emission control

=Yes

=Yes
01 Exhaust manifold 1 09/1992 11622244964
For vehicles with
  National version Germany
  or
  National version Switzerland
and
  Catalytic converter
  or
  Emission control

L801A=Yes

L804A=Yes

=Yes

=Yes
01 Exhaust manifold 1 09/1992 11622244964
only in conjunction with
-- Hose f radiator and engine return 1 09/1992 11532245117
02 Gasket w/heat prot.shield asbestosfree 1 01/1996 11622247024 $27.16
only in conjunction with
-- Gasket Steel 4 01/1996 11622246174 $4.27
Required for repair
-- Hex nut wiht flange M8 4 01/1996 18307620549
02 Gasket w/heat prot.shield asbestosfree 1 01/1996 11622247024 $27.16
Required for repair
-- Hex nut wiht flange M8 4 01/1996 18307620549
03 Gasket Asbestos Free 4 01/1996 11622243782 $10.94
03 Gasket Steel 4 01/1996 11622246174 $4.27
only in conjunction with
-- Gasket w/heat prot.shield asbestosfree 1 01/1996 11622247024 $27.16
03 Gasket Steel 4 01/1996 11622246174 $4.27
04 Hex nut wiht flange M8 12 18307620549
05 Washer 18X8,4X3 12 13512243795 $0.30
06 Gasket Asbestos Free 1 11622244515 $11.90
Required for repair
-- Screw M10X25 3 11652243402 $5.37
06 Gasket Asbestos Free 1 11622244516 ENDED
07 Screw M10X25 3 11652243402 $5.37
Notes
  • ENDED = the part has been discontinued (no longer available).
