3' E36 325td Cylinder Head

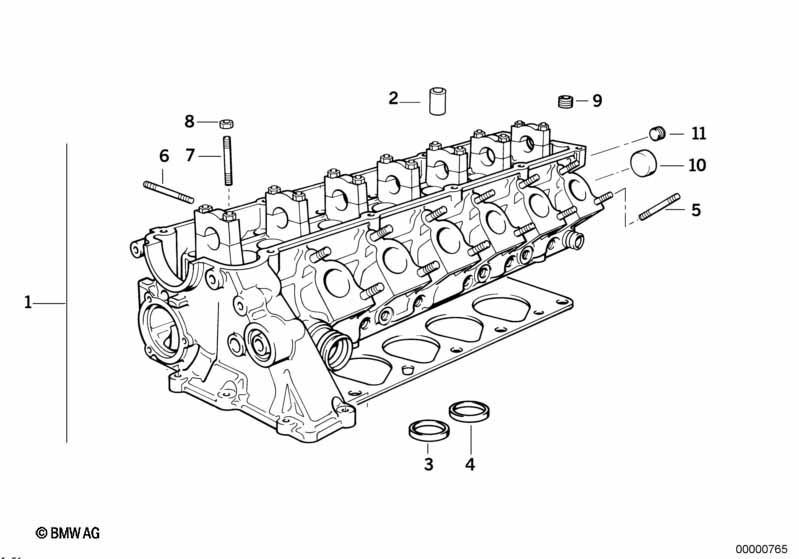

Cylinder Head
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder Head 1 09/1992 01/1996 11122246178 $2125.98
only in conjunction with
-- Stud bolt M8X45-8.8-ZNS3 12 09/1992 01/1996 07129903965 $2.25
01 Cylinder Head 1 01/1996 11122246178 $2125.98
only in conjunction with
-- Stud bolt M8X60 12 01/1996 11122246130
01 Exch. cylinder head (sales campaign) 1 09/1992 11120031258 ENDED
Part without cylinder head gasket
01 Exch. cylinder head (sales campaign) 1 01/1994 11120031258 ENDED
Part without cylinder head gasket
ONLY APPLIES TO
CRANK CASE W/UNMACHIN.PART NO. 2 245249
WITH INTEGRAL INJECTION PUMP CARRIER
01 Exch. cylinder head (sales campaign) 1 01/1994 11120031258 ENDED
Part without cylinder head gasket
ONLY APPLIES TO
CRANK CASE W/UNMACHIN.PART NO.2 242 891
WITH SCREWED ON INJECTION PUMP CARRIER
01 Exch. cylinder head (sales campaign) 1 01/1994 11120031258 ENDED
Part without cylinder head gasket
see service information SIT 843 11 02
88 (valve stem oversize)
02 Valve Guide 12 11122244464 ENDED, SI 11028843
03 Valve Seat Ring Intake 38,55MM(+0,4) 6 11122244272
04 Valve Seat Ring Exhaust 32,55MM(+0,4) 6 11122244278
05 Stud bolt M8X45-8.8-ZNS3 12 01/1996 07129903965 $2.25
05 Stud bolt M8X60 12 01/1996 11122246130
06 Stud bolt M8X55 12 11127791553 $1.07
07 Stud bolt M7X45 12 07129908199 $0.89
08 Flange nut M7 12 11617545279 $0.47
09 Screw plug M16X1,5-ZNS 6 07119903282 $5.82
10 Cover lid D=24MM 1 07119906056 $0.61
11 Screw plug M10X1 1 11122244830 $2.12
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
