3' E36 325td Engine Block Mounting Parts

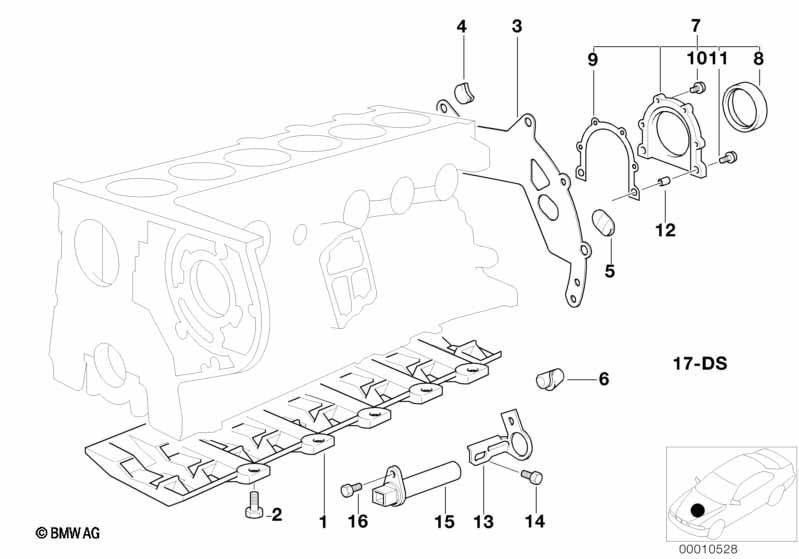

Engine Block Mounting Parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Bowl reinforcement 1 11112243270 $159.08
02 Hex bolt with washer M8X20-Z1 2 03/2000 07119915093 $0.47 ENDED
02 Hex bolt with washer M8X20-ZNS3 2 07147165618 $0.73
03 Covering plate 1 11142243305 $11.15
04 Cover lid 1 11141730453 $3.22
05 Cover 1 11141722774
06 Blind plug 1 11111714541 $1.60
07 Set of covers 1 11142247867 $94.60
08 Shaft seal 90X110X12 1 11142249533 $58.96
09 Gasket Steel 1 11141432240 $3.10
10 Hex bolt with washer M6X25-ZNNIV SI 4 07119905400 $0.65
11 Hex bolt with washer M8X28-ZNNIV SI 2 07119905530 $0.71
12 Dowel D=10,5MM 2 11121726238 $1.62
13 Bracket 1 12522246488
14 Hex bolt with washer M6X10-Z1 1 07119915041 $0.25
15 Speed sensor 1 13622243560 $142.05
16 Fillister-head screw M6X12-ZNNIV SI 1 03/2000 07119905816 ENDED
16 ISA screw M6X12-8.8-ZNNIV 1 07129905867
17 Gasket Set Engine Block Asbesto Free 1 01/1994 11119066462 $168.19 +core
17 Gasket Set Engine Block Asbesto Free 1 01/1994 11112245749 $155.06
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
