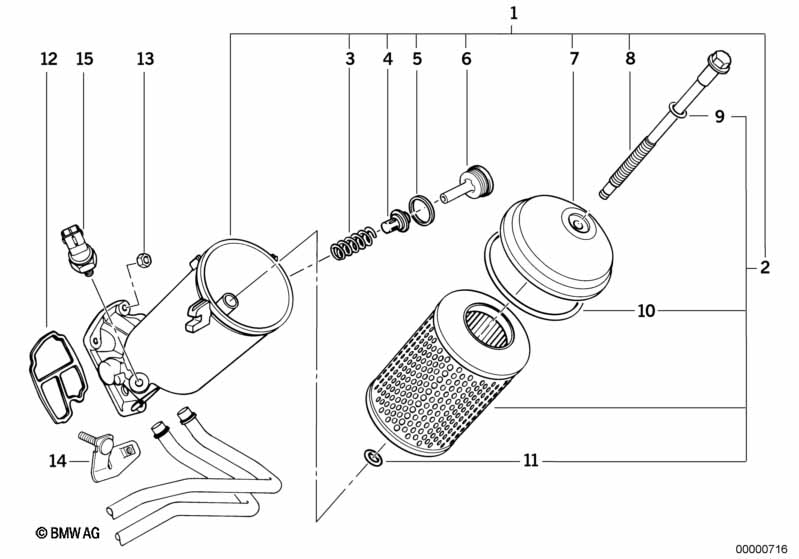

3' E36 325td Lubrication system-Oil filter
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter with oil cooler connection | 1 | 01/1996 | 11422246395 | $261.14 | +core | |||
| ONLY APPLIES TO OIL FILTER ALUMIN.COVER | |||||||||
| 02 | Set oil-filter element | 1 | 01/1996 | 11422244332 | $21.65 | ||||
| ONLY APPLIES TO OIL FILTER PLASTIC COVER | |||||||||
| 02 | Set oil-filter element | 1 | 01/1996 | 11422246131 | $21.65 | ||||
| 03 | Spring | 1 | 01/1996 | 11422243366 | ENDED | ||||
| 04 | Thermostat | 1 | 01/1996 | 11422243365 | ENDED | ||||
| 05 | Gasket ring | 33,5X36X2 | 1 | 01/1996 | 11422244755 | ENDED | |||
| 06 | Cover | 1 | 01/1996 | 11422244612 | ENDED | ||||
| ONLY APPLIES TO OIL FILTER ALUMIN.COVER | |||||||||
| 07 | Oil filter cover | 1 | 01/1996 | 11422243361 | |||||
| ONLY APPLIES TO OIL FILTER PLASTIC COVER | |||||||||
| 07 | Oil filter cover | 1 | 01/1996 | 11422246171 | $42.10 | +core | |||
| 08 | Hex bolt | 1 | 01/1996 | 11422243363 | |||||
| 09 | Gasket ring | 10,5X16X1 | 1 | 01/1996 | 11422243760 | ||||
| 10 | O-ring | 101X4,2 | 1 | 01/1996 | 11422242433 | $2.98 | |||
| 11 | O-ring | 4,5X1,5 | 1 | 01/1996 | 11421711076 | $0.37 | |||
| 12 | Gasket Steel | 1 | 01/1996 | 11422245842 | $6.08 | ||||
| 13 | Hex nut wiht flange | M8 | 4 | 01/1996 | 11611713432 | $0.43 | ENDED | ||
| 14 | Bracket oil pipe | 1 | 01/1996 | 11612243811 | |||||
| 15 | Oil pressure switch | M12X1,5 | 1 | 01/1996 | 12617620512 | ENDED, +core | |||
| 15 | Oil pressure switch | M12X1,5 | 1 | 01/1996 | 12612367061 | ENDED | |||
| 15 | Oil pressure switch | M12X1,5 | 1 | 01/1996 | 12618611273 | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
