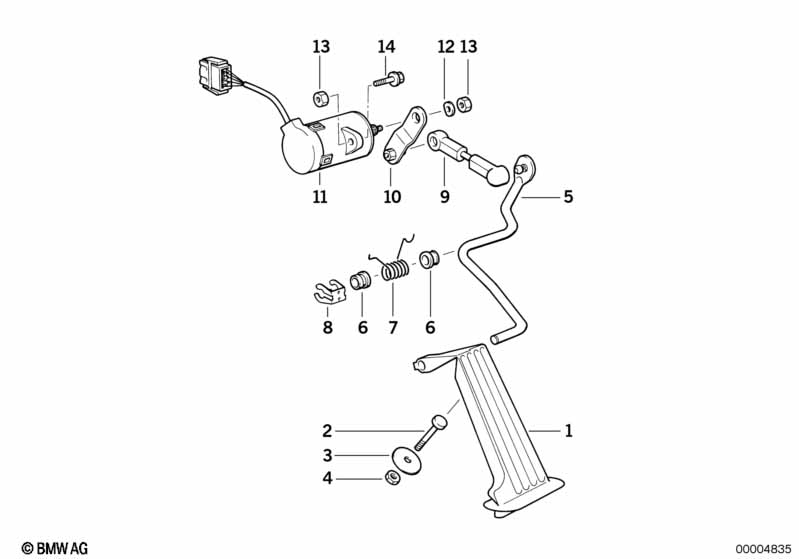

3' E36 325tds ACC.pedal/acceler. pedal assy-potentiom.

ACC.pedal/acceler. pedal assy-potentiom.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Accelerator pedal assy 1 35411158660 $26.33
02 Knurled bolt M8X71MM 1 35411157679 $1.17
03 Cover D=36MM 1 35411156142 $0.52
04 Hex nut M8-05-ZNNIV SI 1 07119904948 $1.00
04 Hex nut BM8 1 07119921077 $0.13 ENDED
05 Shaft, accelerator pedal DIESEL 1 35411162123 ENDED
only in conjunction with
-- Repair kit springs 1 35419068655
-- Hex nut M5 1 07129903287 $0.17
-- Ball pin D=8MM/M5 1 07119987302 $2.53
06 Bushing D=12,2MM 2 35411154172 $0.52
07 Repair kit springs 1 35419068655
08 Clamping spring 1 35411155837 $0.80
09 Connection rod 1 35411162352
10 Accelerator pedal potentiometer lever 1 35411162419
11 Accelerator Pedal sensor 8-POLIG 1 13622245690
12 Wave washer B6 1 07119932099 $0.38
13 Hex nut M6-8-ZNNIV SI 3 07119905543 $0.38
14 Hex bolt with washer M6X25-Z3 2 07119915046 $0.47
Notes
  • ENDED = the part has been discontinued (no longer available).
