3' E36 318i Trailer, indiv. parts, floor assy

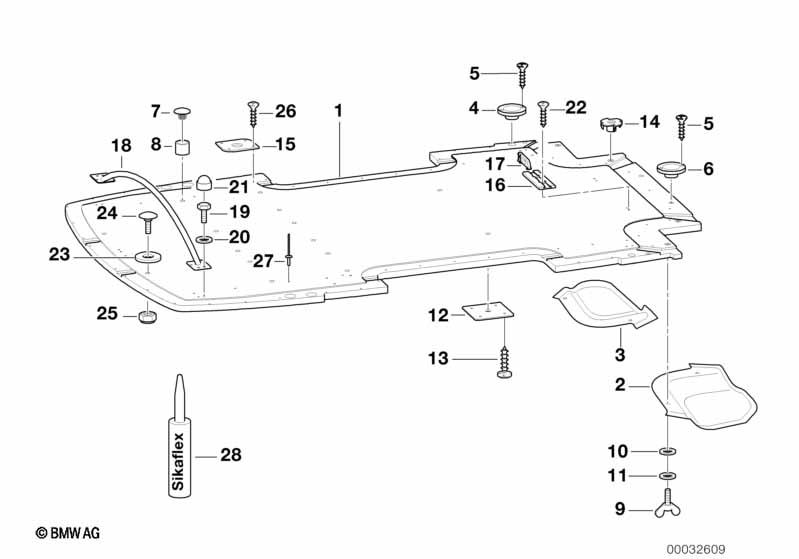

Trailer, indiv. parts, floor assy
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Base plate 1 86199416787 ENDED
02 Lamp guard, left 1 86199416789 ENDED, +core
03 Lamp guard, right 1 86199416788 ENDED, +core
04 Plastic bush 4 86199416790 ENDED
05 Csk.lenshead screw 3,5X13 MM X 86199416951 ENDED
06 Metal bush 2 86199416791 ENDED
07 Plug X 86199416792 $0.25 ENDED
08 Spacer tube 14,5 MM X 86199416793 ENDED
09 Wing screw M6X20 4 86199416794 ENDED
10 Rubber washer 20X6X3MM X 86199416795 ENDED
11 Washer 6,4 4 05/1990 07119931044 $0.58 ENDED
11 Washer A6,4-ZNS 4 08/2000 07119931018 $0.40 ENDED
11 Washer A6,4-ZNNIV SI 4 07119904202
12 Holder 2 86199416796 ENDED
13 Fillister head self-tapping screw ST3,5X16 8 07119907783 $0.09
14 Impact nut M6 4 86190000757 $51.34 ENDED
15 Console socket outlet 12V 1 86190000758 $51.34 ENDED
16 Lashing plate 76X45,5 MM 8 86190000759 $51.34 ENDED, +core
17 Tie-down ring 8 86199416290 $10.75 ENDED
18 Bow 1 86190000760 ENDED, +core
19 Hex bolt with washer M8X35-Z3 2 07119912492 $0.33
20 Washer 21X8,5X2 MM 2 86199416646 ENDED
21 Protection cap 2 86190000761 ENDED
22 Countersunk screw M8X35 X 86190000762 $0.75 ENDED
23 Washer D=45 MM 2 86199416909 ENDED
24 Saucer-head screw M10X35 2 86199416907 ENDED
25 Self-locking hex nut M10 2 08/2000 07129900580 $0.75 ENDED
25 Hex nut M10-10-ZNS3 2 07129904473 $0.47
26 Csk.lenshead screw 3,5X16 MM 2 86190000763 ENDED
27 Blind rivet 6,4X26 MM X 86199416949 ENDED
28 Sikaflex braun 310ML 1 86199416797 $33.76 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
