3' E36 318i Belt Drive Water Pump/Alternator

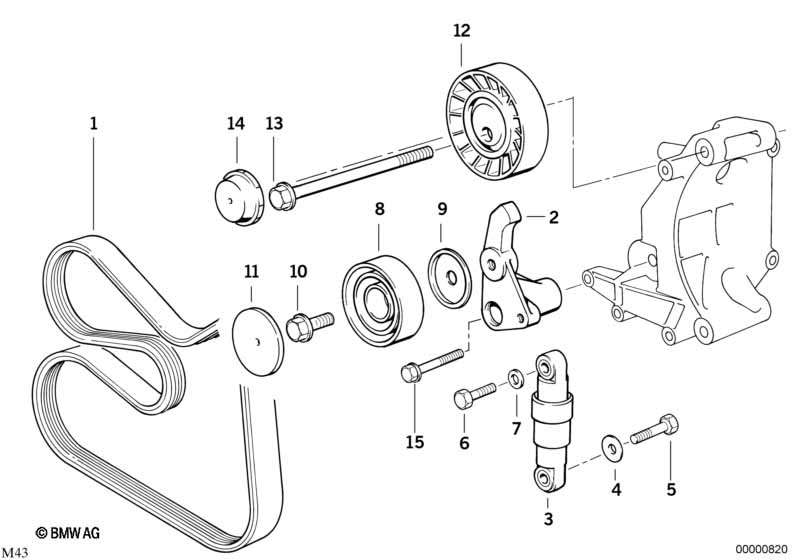

Belt Drive Water Pump/Alternator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ONLY APPLIES TO ALTERNATOR 70A
01 Ribbed v-belt 6K X 1660 1 01/1994 11281247986 $38.78 ENDED
01 Ribbed v-belt 6K X 1660 1 01/1994 11287636373
02 Deflection lever 1 01/1994 11281247052 $67.67
03 Belt tensioner 1 01/1994 11281247051 $101.95
04 Washer 1 01/1994 11287835130 $0.72
04 Washer 1 01/1994 11287835130 $0.72
05 Hex bolt M8X30-ZN 1 01/1994 07119913662 $0.22
06 Hex bolt M8X35-8.8-ZNS3 1 01/1994 05/1996 07119904252 $0.82 ENDED
07 Washer A8,4-200 1 01/1994 05/1996 07119900052 $0.11 ENDED
08 Adjusting pulley 1 01/1994 11281748131 $45.97
09 Mudguard 1 01/1994 11281730532 $2.37
10 Hex bolt M10X25 - ZNS3 1 01/1994 05/1996 07119904162 $1.07 ENDED
11 Protection cap adjusting pulley 1 01/1994 11281727159 $2.37
12 Deflection pulley 1 01/1994 11287841228 $46.81
13 Hex bolt with washer M10X160-Z1 1 01/1994 03/1994 07119900477 ENDED
13 Hex bolt M10X155 1 01/1994 07119900617 $3.51
14 Protection cap 1 01/1994 11281730349 $2.37
15 Hex bolt M10X80 1 01/1994 07119912680 $1.89
Notes
  • ENDED = the part has been discontinued (no longer available).
