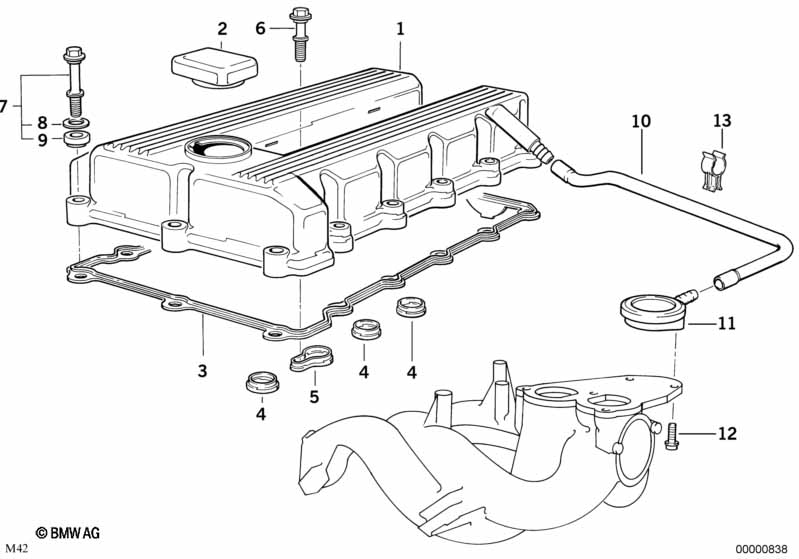

3' E36 318i Cylinder head cover

Cylinder head cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder head cover ´95/´96 1 09/1993 11121739793 $571.14 +core
02 Cap for oil filler 1 09/1993 11121743294 $7.49
02 Cap for oil filler 1 09/1993 11127509328 $7.78
03 Profile-gasket 1 09/1993 11121721876 $22.04
04 Profile-gasket 3 09/1993 11121721476 $1.79
05 Profile-gasket 1 09/1993 11121721475 $2.13
06 Collar screw M6X27,5 2 09/1993 11121721883 $2.67
07 Collar screw M6X42,5 X 09/1993 11127568809 $3.17
08 Washer X 09/1993 03/1996 11121721896 $1.50 ENDED
08 Washer 10-200 HV-ZNNIV X 09/1993 07119904168 $8.35
09 Rubber seal X 09/1993 11121721879 $1.20
10 Vent hose 1 09/1993 11151247743 $30.16
11 Crank case vent valve 1 09/1993 11157501567 $61.05
12 Fillister head with washer M6X20-Z1 1 09/1993 07119900678 $0.71
13 Hose clamp 1 09/1993 11611739684 $1.77
only applies to
-- Vent hose X 09/1993 11151739547 $13.60 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
