3' E36 318i Alternatormounting parts

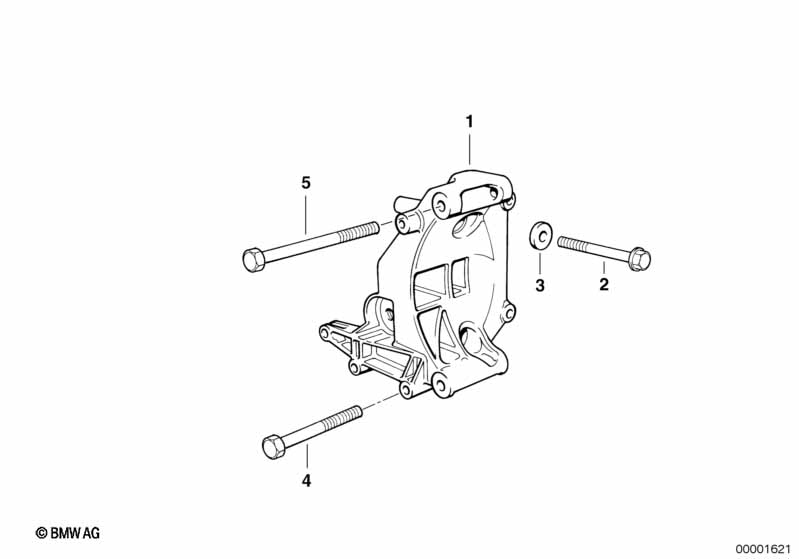

Alternatormounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting bracket 1 09/1993 12311739514 $105.83 +core
02 Hex bolt with washer M8X85-U1-8.8 2 09/1993 07119906141 $1.89
03 Washer A8,4-200 2 09/1993 03/1996 07119900052 $0.11 ENDED
03 Washer 8,4X16X1,6-ZNNV 2 09/1993 07119907030
04 Hex bolt with washer M8X75-Z1 3 09/1993 03/1996 07119912954 $1.20 ENDED
04 Hex bolt with washer M8X75-Z1-ZNS3 3 09/1993 07119903947
05 Hex bolt with washer M10X110-Z1 2 09/1993 11/1997 07119900476 $1.20
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
