3' E36 318i Fuel supply/filter

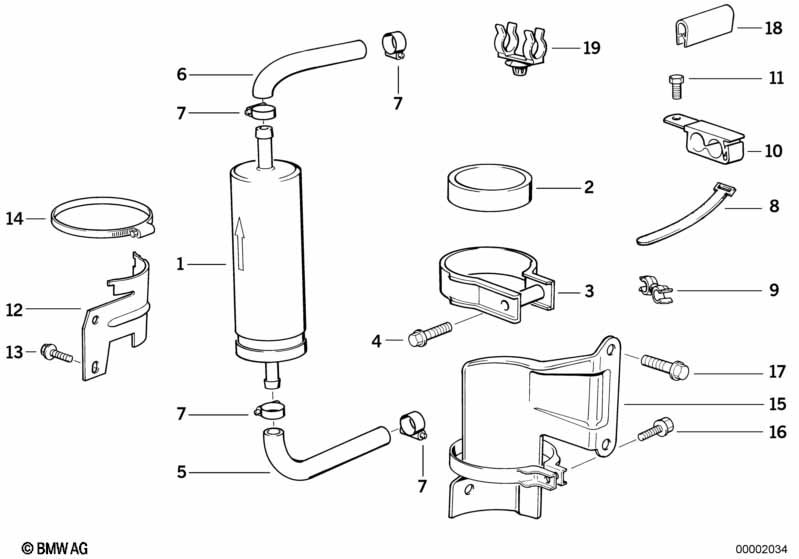

Fuel supply/filter
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i KIT FOR FUEL HOSE AND CLAMP
see Image Text Unit
FUEL INJECTION SYSTEM
01 Fuel filter D=55MM 1 09/1994 13321720102 $44.04 ENDED
01 Fuel filter 1 09/1994 13321720101
02 Damper ring D=55MM 1 09/1994 13321734056 $2.73
03 Fuel strainer bracket with guard D=55MM 1 09/1994 13321734720 $27.11
04 Hex bolt with washer M6X35-U1-8.8 1 09/1994 07119904589 $0.47
07 Hose clamp L12-15 4 10/1978 07129952104 $1.18
07 Hose clamp L12-15 4 12/1994 07129952104 $1.18
08 Cable tie L=292MM/B=4,8MM X 09/1994 61131377134 $0.77
09 Hose clamp 1 13311287351 $1.73
10 Clip 2 13311722326 $1.73
11 Hex bolt with washer M6X12-Z1 2 09/1994 07119915017 $0.36 ENDED
11 Hex bolt with washer M6X12-U1-8.8 2 07119904517 $0.36
12 Bracket 1 13321727344 $1.68 ENDED
13 Hex bolt with washer M6X16-Z3-2 1 07119915021 $0.47
14 Hose clamp L=53-60MM 2 07129952123 $1.78
18 Edge protection GRAU X 51721832146 $5.82
Notes
  • ENDED = the part has been discontinued (no longer available).
