3' E36 318i Fuel injection system/Injection valve

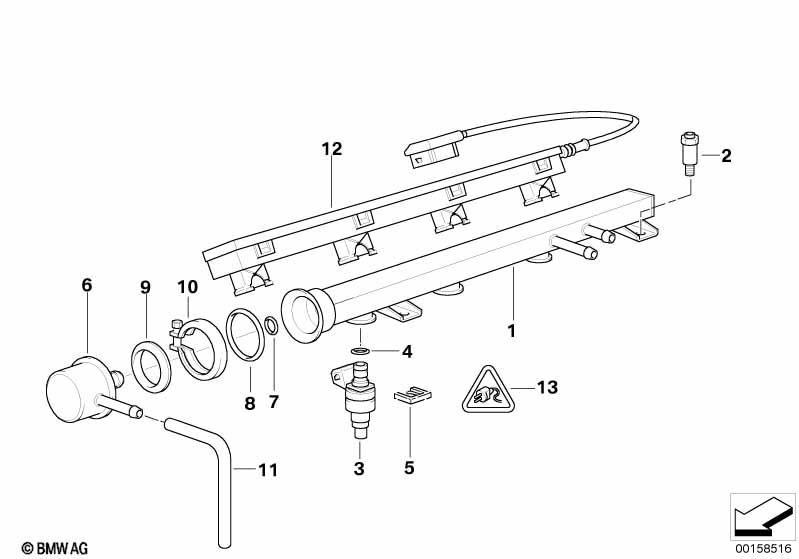

Fuel injection system/Injection valve
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Injection tube HC1/2 1 13531734355 $56.57
02 Spacer M8X56 2 13531721246 $5.85
03 Injection valve 4 01/1994 13641466116 $72.50 ENDED
03 Injection valve 4 01/1994 13641466395 $41.70
03 Injection valve BOSCH 4 01/1994 13641726988 $137.88 ENDED
03 Injection valve BOSCH 4 01/1994 13641706176 $113.07
03 Injection valve LUCAS 4 01/1994 13641739242 $122.42 +core
03 Injection valve with air flow HC1/2 4 01/1994 13641247196 $122.42
only in conjunction with
-- Distribution piece HC1/2 1 01/1994 13531739618 $32.88
04 O-ring 7,52X3,53 4 13641730767 $3.75
04 O-ring 13,5X2,5 4 01/1994 13641743377 $3.75
05 Clamp 4 13531274729 $0.67
06 Pressure regulator 3,0BAR/PIERBURG 1 13531729320 $75.10
07 O-ring 5X1,5 1 13531720252 $3.75
08 O-ring 20X2,5 1 13531720251 $4.38
11 Vacuum hose black 3,5X1,8 X 11727545323 $14.82
13 Socket housing 2 POL. 1 12521427221 $1.73
only in conjunction with
-- Socket terminal SLK 2.8 ELA 0,22-0,35MM² AG 2 12521427612 $0.50 SI 2 02 05(194)
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
