3' E36 318i A4S 270R/310R mounting parts/gaskets

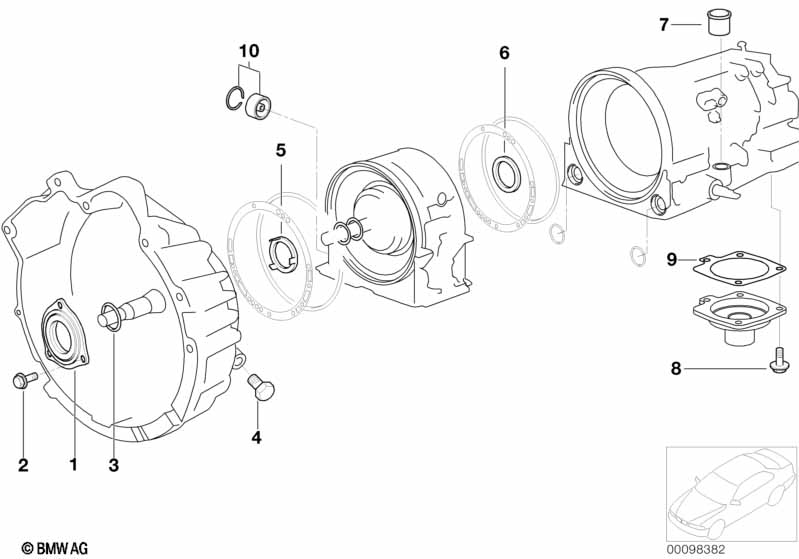

A4S 270R/310R mounting parts/gaskets
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Shaft seal 47X81X8 1 24121218853 $26.13
02 Torx bolt 3 24121218892 $1.15
03 Turbine shaft o-ring 1 24121422247 $1.59 ENDED
04 Screw plug, outer hexagon 1 24001421849 $1.88 ENDED
05 Spacer rings set 1 24201422850 $22.38
06 Spacer rings set 1 24201423112 $67.56 ENDED
07 Blind plug 1 24111421064 $8.25 ENDED
08 Hex bolt 4 24231423247 $0.79 ENDED
09 Gasket 1 24341423250 $6.73 ENDED
10 Rep.kit, sealing cover 1 24337520734 $15.58
Notes
  • ENDED = the part has been discontinued (no longer available).
