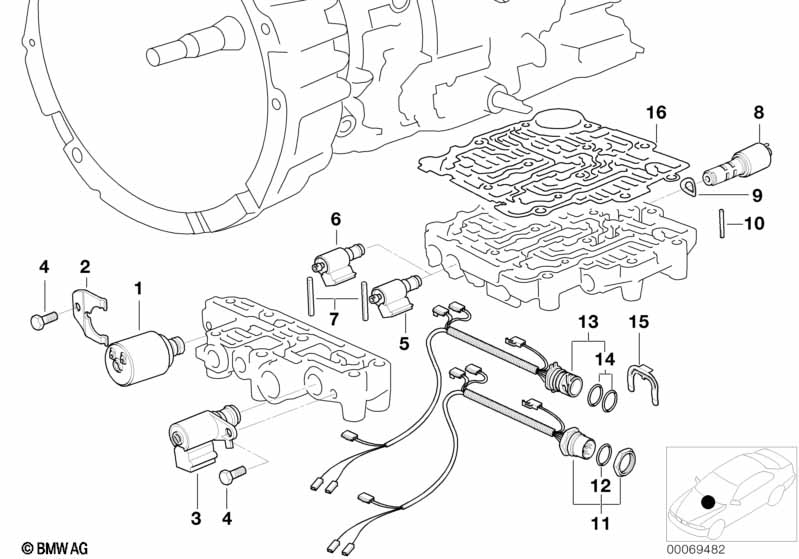

3' E36 318i A4S 270R/310R solenoid valve/cable set
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure regulator solenoid valve kit | 1 | 24357537061 | $502.81 | |||||
| 02 | Holder | 1 | 24331421601 | $1.36 | ENDED | ||||
| 03 | Torque converter solenoid valve | 1 | 24331218916 | $50.30 | ENDED | ||||
| 04 | Hex bolt | 2 | 24331218915 | $0.38 | ENDED | ||||
| 05 | Solenoid valve 2nd+3th gear | 1 | 24337537062 | $59.57 | ENDED | ||||
| 06 | Solenoid valve 1st+2nd/3th+4th gear | 1 | 24337537063 | $59.57 | |||||
| 07 | Roll pin | 2 | 24331218912 | $0.48 | |||||
| 08 | Brake band solenoid valve | 1 | 24331422093 | $165.05 | ENDED | ||||
| 09 | Wave washer | 1 | 24101218906 | $0.43 | |||||
| 10 | Roll pin | 1 | 24101218907 | $0.35 | ENDED | ||||
| 11 | Wiring set | 1 | 24361421368 | $284.02 | |||||
| 12 | O-ring | 1 | 24101218909 | $5.17 | ENDED | ||||
| 16 | Gasket | 1 | 24340017101 | $47.36 | ENDED |
Notes
- ENDED = the part has been discontinued (no longer available).
