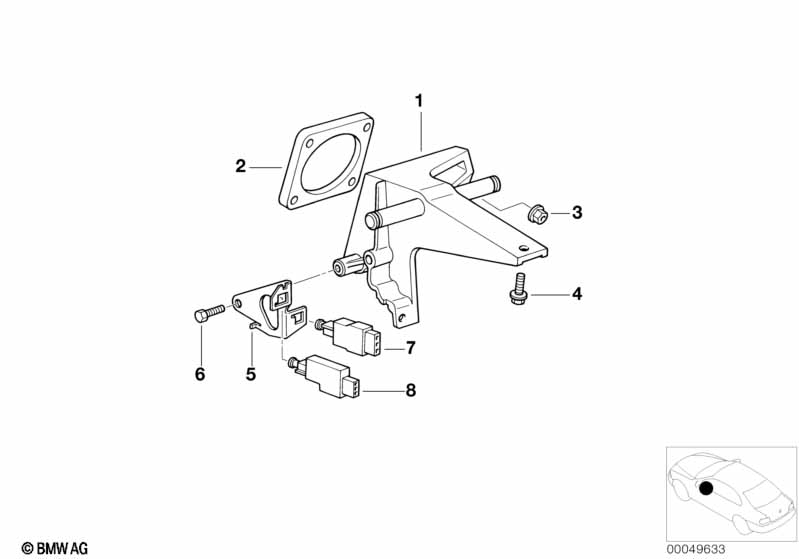

3' E36 318i Pedals-supporting bracket

Pedals-supporting bracket
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting bracket, foot controls 1 03/1997 35101164842 $43.00 +core
02 Gasket Asbestos Free 90X90MM / >6 1 35111157482 $0.80
03 Self-locking collar nut M8-8-ZNS3 4 07119904295 $0.36
03 Self-locking collar nut M8-10 ZNS3 4 07119905374
04 Hex bolt with washer M8X25 1 35111159060 $0.72
05 Bracket f stop light and clutch switch 1 35211159051 $6.78
For vehicles with
Automatic transmission

S205A=Yes
06 Hex bolt with washer M6X40-Z3 1 07119913951 $0.30
07 Stop light switch 2-POLIG 1 61318360420 $32.07
For vehicles with
Check Control

S542A=Yes
07 Stop light switch 4-POLIG/MECH. 1 61318360417 $32.07
Notes
  • +core = plus core charge (possibility of a return of the old part)
