3' E36 318i Body-side frame

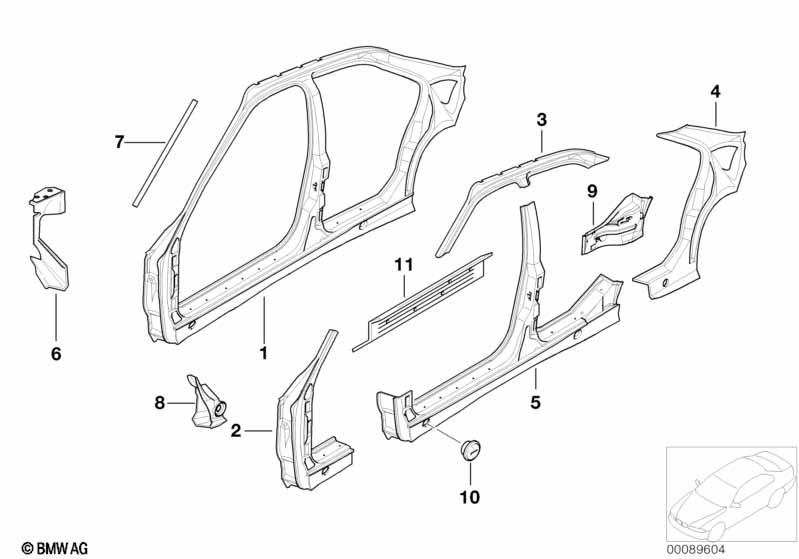

Body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Body-side frame left 1 41008224775 $1107.13
01 Body-side frame right 1 41008224776 $1107.13
02 Left exterior column A 1 41218130101 $603.43
02 Column A exterior right 1 41218130102 $544.60
03 Roof frame left 1 41008132497 $345.96 ENDED
03 Right roof frame 1 41008132498 $371.99
04 Left exterior column C 1 41008132917 $214.14
04 Right exterior column C 1 41008132918 $214.14
05 Column B with left rocker panel 1 41218224769 $507.57
05 Column B with right rocker panel 1 41218224770 $507.57
06 Connect.plate f.left side panel frame 1 41218119255 $64.75
06 Connect.plate f.right side panel frame 1 41218119256 $64.75
07 Connection angle for left cowl panel 1 41218119799 $12.84
07 Connection angle for right cowl panel 1 41218119800 $12.84 ENDED
08 Support left 1 41218119259 $15.74 ENDED
08 Support right 1 41218119260 $15.74 ENDED
09 Rear left side member 4 41118132991 $120.63
09 Right rear side member 1 41118132992 $120.63
10 Lock HELLGRAU 4 09/1996 51718151431 $0.85
10 Lock DUNKELGRAU 4 09/1996 51718151432 $6.18
10 Lock SW SEIDENMATT 4 09/1996 51718227694 $0.85
11 Left side member 1 41128119251 $86.81
11 Right side member 1 41128119252 $86.81
Notes
  • ENDED = the part has been discontinued (no longer available).
