3' E36 320i Body-side frame

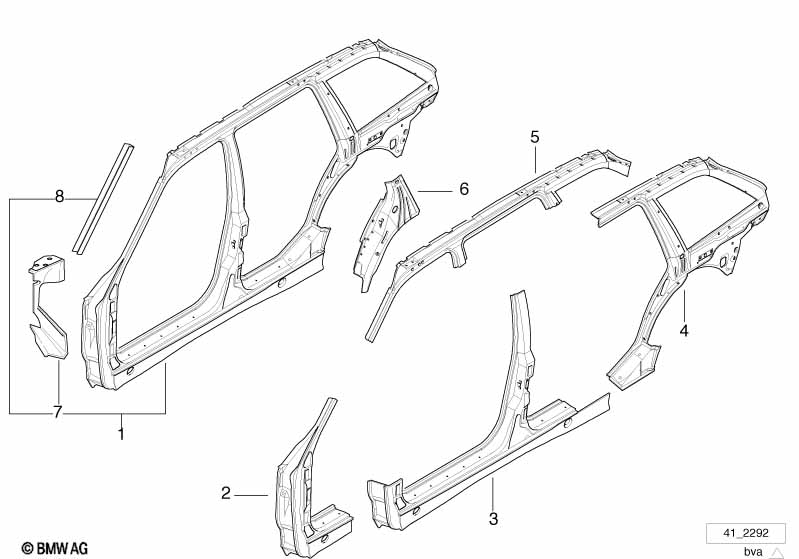

Body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Body-side frame left 1 41008224777 ENDED
01 Body-side frame right 1 41008224778
02 Left exterior column A 1 41218130101 $603.43
02 Column A exterior right 1 41218130102 $544.60
03 Column B with left rocker panel 1 41218224771
03 Column B with right rocker panel 1 41218224772
04 Column rear left 1 41008191697
04 Column rear right 1 41008191698
05 Roof frame left 1 41008191695 ENDED
05 Right roof frame 1 41008191696 ENDED
06 Reinforcement wheelhousing left 1 41218191705
06 Reinforcement wheelhousing right 1 41218191706
07 Connect.plate f.left side panel frame 1 41218119255 $64.75
07 Connect.plate f.right side panel frame 1 41218119256 $64.75
08 Connection angle for left cowl panel 1 41218119799 $12.84
08 Connection angle for right cowl panel 1 41218119800 $12.84 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
