3' E36 323i Sports steering wheel
Sponsored links
Sponsored links

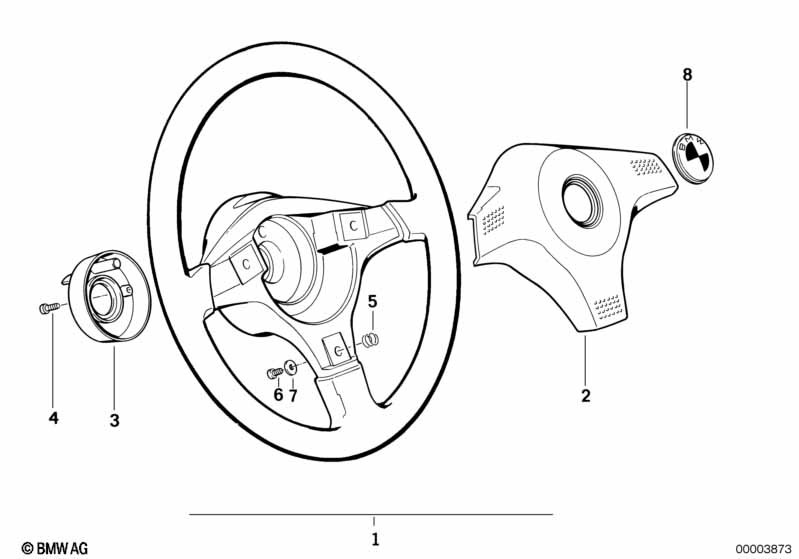

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Sports steering wheel | D=385MM | 1 | 32341159693 | EBA 9783640, ABE 9787735 | ||||
| Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 02 | Horn pad | 1 | 32331158880 | $68.17 | |||||
| 03 | Slip ring | 1 | 32311159065 | $9.28 | |||||
| 04 | Fillister head screw | M3,5X8 | 3 | 32331117126 | $0.50 | ||||
| 05 | Compression spring | 3 | 32311159342 | $2.80 | ENDED | ||||
| 06 | Screw | 4X9,5 | 3 | 32311159064 | $1.95 | ||||
| 07 | Insulating washer | 3 | 32331159745 | $1.82 | |||||
| 08 | Badge | 1 | 32331117279 | $7.32 | |||||
Notes
- EBA = Einbauanleitung (Installation instructions)
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
- ENDED = the part has been discontinued (no longer available).
