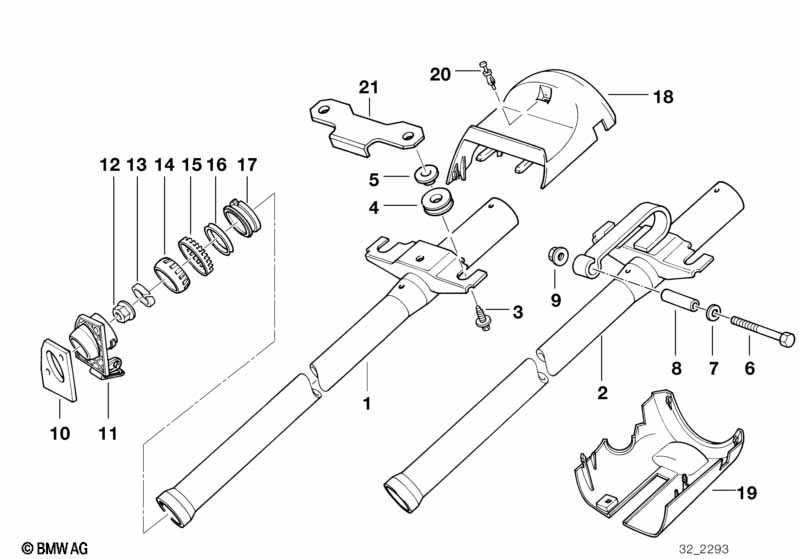

3' E36 323i Fixed steering column tube

Fixed steering column tube
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
SA 710 = steering wheel airbag M-technic

=No
01 Steering column tube 1 32311093041
only in conjunction with
-- Guide bush 1 32311093601 $0.48
-- Sleeve L=5,25MM 1 32311161899 $0.75
For vehicles with
Air bag

=Yes
02 Steering column tube 1 32311092714 $61.27
03 Fracture bolt M8X25 9.8 2 32311160255 $1.81
04 Guide bush 2 32311093601 $0.48
05 Sleeve L=5,25MM 2 32311161899 $0.75
For vehicles with
Air bag

=Yes
06 Hex bolt M8X75 1 08/2000 07119912553 $2.42 ENDED
06 Hex bolt M8X75-8.8-ZNS3 1 07119906028
07 Washer A8,4-200 1 08/2000 07119900052 $0.11 ENDED
07 Washer 8,4X16X1,6-ZNNV 1 07119907030
08 Spacer bush 1 32311161882 $6.95
09 Self-locking hex nut M8-8-ZNNI SI 1 07129906196 $1.60
10 Gasket 1 32311159766 $1.52
11 Housing 1 32311159760 $10.59
12 Self-locking collar nut M8-10 ZNS3 2 07119905374
13 Ring 1 32311092849 $3.40
14 Joint link ball 1 32311092847 $1.77
15 Joint link pan 1 32311159764 $1.68
16 Rubber Ring 1 32311159763 $1.12
17 Lock 1 32311159761 $1.82
18 Trim panel upper part 1 32311093251 $18.00
19 Lower trim panel 1 32311093274 $14.00
20 Clamp 2 51131885399 $0.35
Notes
  • ENDED = the part has been discontinued (no longer available).
