3' E36 323i M cross-spoke,threaded (styl.29)

M cross-spoke,threaded (styl.29)

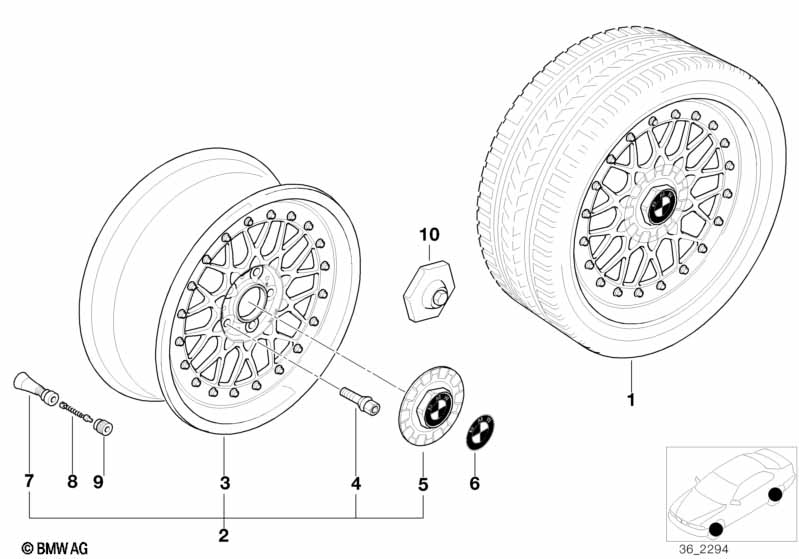

No. Description Supp. Qty  From   Up To  Part Number Price Notes
DIFFERENT TIRE SIZE
FRONT AXLE 225/45ZR17
REAR AXLE 245/40ZR17
01 Set complete alloy wheels summer 1 85229409975 TÜV 0017318
ONLY IN CONJUNCTION WITH
INSTALLATION KIT STEERING ANGLE STOP
02 Two-piece light alloy rim 71/2JX17 ET:41 4 85329409847 TÜV 0017318, TÜV 9790121, TÜV 9790123
02 Two-piece light alloy rim 81/2JX17 ET:41 2 85329409848 TÜV 0017318, TÜV 9790121, TÜV 9790123
03 Two-piece light alloy rim 71/2JX17 ET:41 4 36112227647 $574.00 +core, TÜV 0017318, TÜV 9790121, TÜV 9790123
03 Two-piece light alloy rim 81/2JX17 ET:41 2 36112227648 $635.00 +core, TÜV 0017318, TÜV 9790121
04 Wheel bolt black M12X1,5 X 36136781150 $3.21
05 Hub cap 4 36132227641 $62.50 ENDED, +core
06 BMW plaque with adhesive film D=58MM 4 36131181081 $5.85
07 Rubber valve L=42,5MM 4 36121116326 $3.30
08 Valve 4 36141095389 $1.38
09 Valve caps 4 36121120779 $0.60
10 Hub cap wrench SW=17MM 1 36131180626 $8.82
Notes
  • TÜV = Herstellerbescheinigung (Manufacturer certification)
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
