3' E36 323i Extending cargo cover/partition net

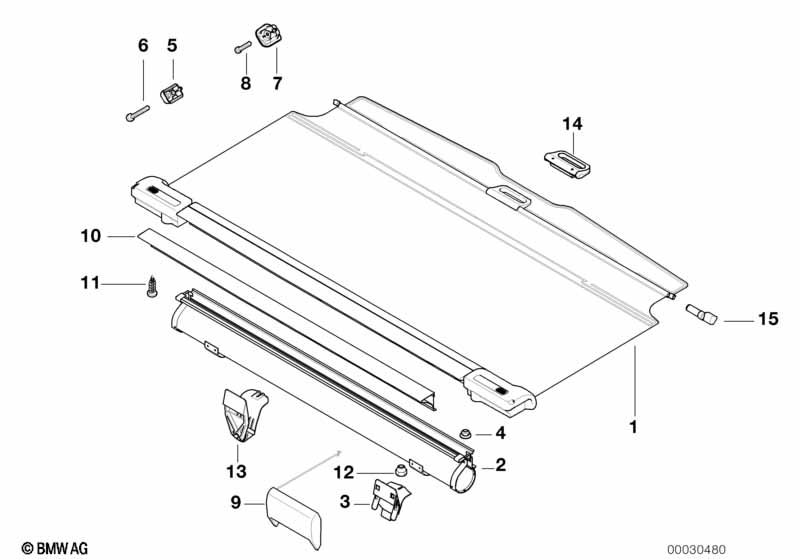

Extending cargo cover/partition net
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Roller blind SCHWARZ 1 51478191822 $451.98 ENDED
01 Roller blind GRAU 1 51478191824
01 Roller blind BEIGE 1 51478191826 ENDED
ONLY APPLIES TO NET ROLLER
01 Roller blind SCHWARZ 1 51478193961 $451.98
01 Roller blind GRAU 1 51478193962 ENDED
01 Roller blind BEIGE 1 51478193963 ENDED
02 Netted blind SCHWARZ 1 51478191855
02 Netted blind GRAU 1 51478191856 ENDED
02 Netted blind BEIGE 1 51478191857 ENDED
03 Netted blind support 2 51472492325 ENDED, +core
04 Cap nut M5 2 51711934930 $0.23
05 Support left GRAU 1 51478193953
05 Support right GRAU 1 51478193954
05 Support left BEIGE 1 51478193955 ENDED
05 Support right BEIGE 1 51478193956 ENDED
05 Support left SCHWARZ 1 51482267161
05 Support right SCHWARZ 1 51482267162
06 Fillister head screw M6X30-8.8-ZN 2 07119900571
07 Support left GRAU 1 51478193957
07 Support right GRAU 1 51478193958 ENDED
07 Support left BEIGE 1 51478193959
07 Support right BEIGE 1 51478193960 ENDED
07 Support left SCHWARZ 1 51482267163 ENDED
07 Support right SCHWARZ 1 51482267164 ENDED
08 Torx bolt ISA M6X16 2 41352290799 $1.10
09 Covering cap 2 51478209757
10 Cover BEIGE 1 51478191772 ENDED
10 Cover SCHWARZ 1 51478191841 ENDED
10 Cover GRAU 1 51478191842 ENDED
11 Fillister head self-tapping screw ST3,5X9,5 3 05/1999 07119906717 $0.25 ENDED
11 Sheet metal screw 3,5X9,5 3 07119904455 $2.45
12 Self-locking hex nut M6 2 64509123157 $0.70
13 Netted blind support 2 03/1996 51472492325 ENDED, +core
14 Set handle SCHWARZ 1 51478253876
14 Set handle DUNKELGRAU 1 51478253877 ENDED
14 Set handle DUNKELBEIGE 1 51478253878 ENDED
15 Pin 2 51478149029 $1.38
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
