3' E36 325tds Engine oil cooling

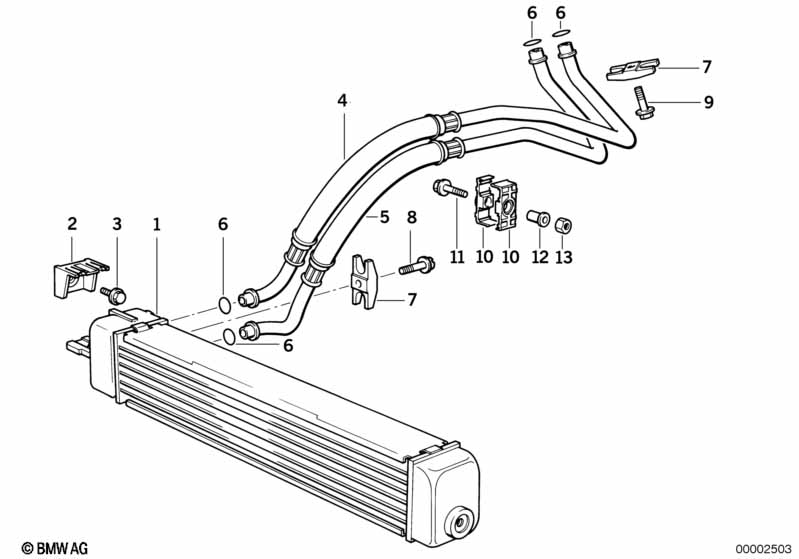

Engine oil cooling
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooler 1 17212244741
only in conjunction with
-- Sealing strip 520X20X50 1 17112245591
-- Sealing strip 1 17112245970
02 Bracket oil cooler mounting 1 17512243659 $4.12
03 Hex bolt M6X20-Z4 1 11652243770 $1.07 ENDED
04 Oil cooling pipe inlet 1 17222246620
05 Oil cooling pipe outlet 1 17222246621
06 O-ring 13,4X1,78 4 17222245358 $1.18
07 Bracket oil pipe 2 17212243052 $8.28
08 Hex bolt with washer M8X35-Z3 1 07119912492 $0.33
09 Hex bolt with washer M8X35-Z3 1 07119912492 $0.33
10 Bracket oil pipe 2 17201712209 $3.52
12 Spacer sleeve D6 1 17227798686 $3.32
13 Hex nut M6-8-ZNNIV SI 1 09/1993 07129905817
only in conjunction with
-- Washer A6,4-200HV-ZNS3 1 09/1993 07119903791 $0.11
Notes
  • ENDED = the part has been discontinued (no longer available).
