3' E36 325tds Transmission oil cooling/oil cooler

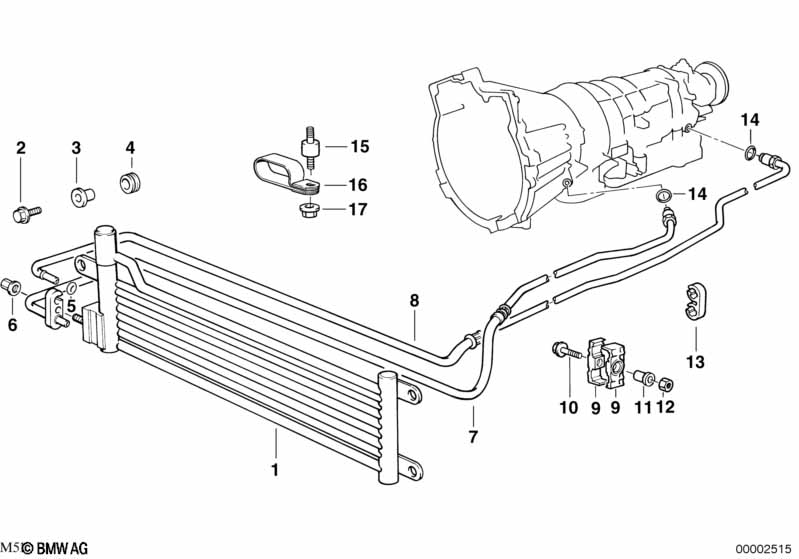

Transmission oil cooling/oil cooler
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooler 1 17212245018
02 Hex bolt with washer M6X30-Z2 3 05/1999 07119900254 $0.53 ENDED
03 Sleeve 3 17212245019
04 Rubber grommet 3 31421232245 $1.87
05 O-ring 13,4X1,78 2 17222245358 $1.18
06 Collar nut M8 1 07119927022 $0.20
06 Collar nut M8-8-SC-ZNNIV 1 07119906089 $0.32
07 Oil cooling pipe inlet A5S310Z 1 17222244749 +core
08 Oil cooling pipe outlet A5S310Z 1 17222244750 +core
09 Bracket oil pipe 2 17201712210 $1.02
11 Spacer sleeve D6 1 17227798686 $3.32
12 Hex nut with plate AM6-8-ZNNIV SI 1 07129905542 $0.47
13 Fixing clamp A=25,5MM 1 17221712573 $1.97
14 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
15 Rubber Mounting 1 17111113699 $5.18
16 Bracket oil cooler mounting 1 17222244744
17 Hex nut with plate AM6-8-ZNNIV SI 2 07129904553 $0.64
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
