3' E36 328i Parking brake/brake shoes

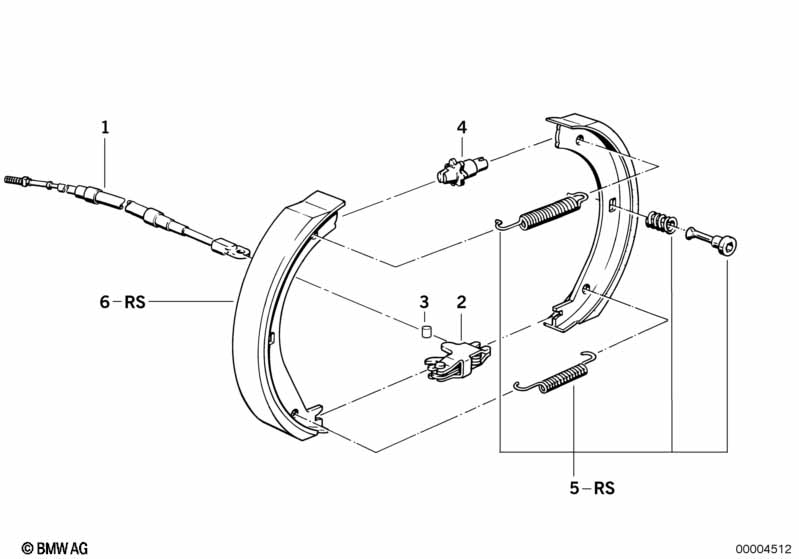

Parking brake/brake shoes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i The following components are vital and
mandatory for brake shoe replacements:
spring repair kit
brake shoe expander
adjustment screw
01 Bowden cable 2 34411160134 $40.64
02 Expanding lock 2 12/2013 34411163709 $22.23 ENDED
only in conjunction with
-- Pin 2 12/2013 34411100640 $1.67
02 Expanding lock 2 34416868624
only in conjunction with
-- Pin 2 34411100640 $1.67
03 Pin 2 34411100640 $1.67
04 Adjusting screw 2 09/2011 34411166245 $19.87 ENDED
04 Adjusting screw 2 34416851438
05 Repair kit springs 1 34419064274 $17.56
06 Repair kit brake shoe asbestos-free 1 34416761289 $92.33
For vehicles with
National version Great Britain

L812A=Yes
06 Repair kit brake shoe asbestos-free 1 34416761289 $92.33
Notes
  • ENDED = the part has been discontinued (no longer available).
