3' E36 318ti Timing case

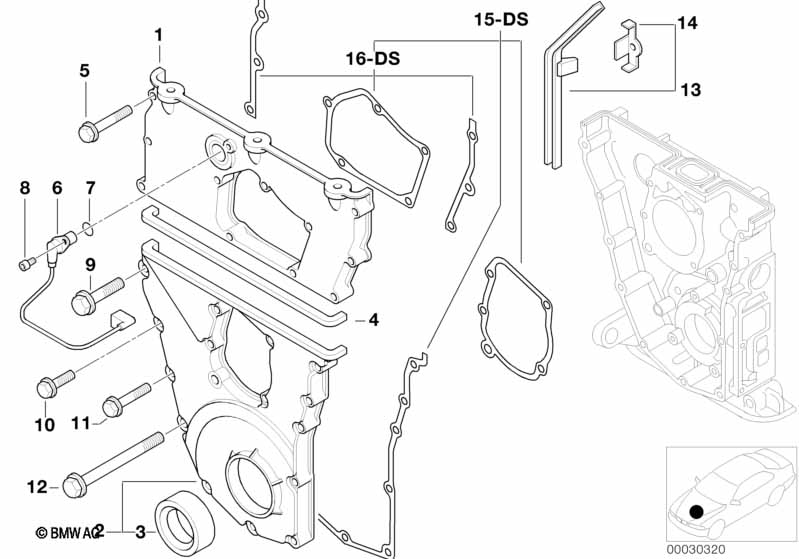

Timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing case cover, top 1 11141727174 $96.98
02 Timing case cover, bottom 1 11141439646 $158.65
03 Shaft seal 44X60X10 1 11141439570 $24.92
04 Profile-gasket 1 11141247837 $6.96
05 Hex bolt with washer M6X35-U1-8.8 X 07119904589 $0.47
06 Trigger contact 1 12141247258 $116.05 +core
07 O-ring 18X2 1 12141727220 $0.70
08 Fillister-head screw M6X16 2 11421740488 $0.98
09 Hex bolt with washer M8X30-ZNNIV SI 1 07119905532 $1.25
10 Hex bolt with washer M6X20 4 07119904527 $0.44
11 Hex bolt with washer M6X30-ZNNIV SI 9 07119906123 $0.81
12 Hex bolt with washer M8X80-U1-8.8 2 07119906270 $3.37
13 Guide 1 12141727221 $1.78 ENDED
14 Holder 1 12141727777 $0.75 ENDED
15 Gasket set chain case asbestofree 1 11141247633 $18.77
16 Gasket set chain case asbestofree 1 11141247429 $8.74
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
