3' E36 318ti Sliding lifting roof drive

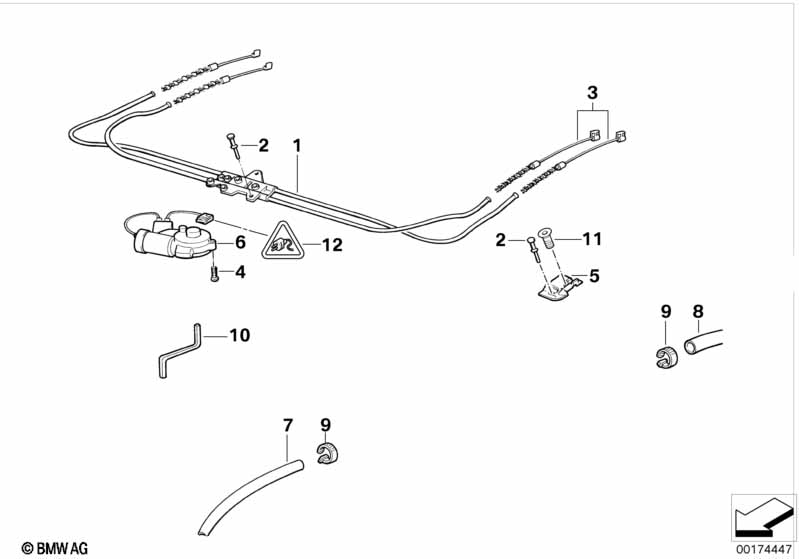

Sliding lifting roof drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Guide tube 1 11/1994 54128206390 $54.02 +core
02 Blind rivet SCHWARZ 2 11/1994 54128144789 $0.56
03 Bowden cable 1 11/1994 54128206388 $59.46
04 Torx bolt ISA M5X27 2 08/2000 54128176530 $1.39 ENDED
04 Torx bolt ISA M5X27 2 07147077613 $0.82
04 Torx bolt ISA M5X32 1 54128116590 $0.75
05 Left pipe clamp 1 11/1994 54128206391 $5.70
05 Right pipe clamp 1 11/1994 54128206392 $5.70
06 Electr.sliding-lifting roof transmission 1 67618370823 $316.19
07 Outlet hose L=1760MM 2 54128185083 $5.40
08 Outlet hose L=1760MM 2 54128185083 $5.40
09 Hose clamp L15-19 4 07129952107 $0.93
10 Emergency tool elect.window/sliding roof 1 08/2000 54121873572 $10.05 ENDED
10 Emergency tool elect.window/sliding roof 1 54127199322 $9.78
11 Torx-bolt for plastic material L=9MM 4 11/1994 54128206394 $0.75
12 Socket housing, natural 2 POL. 1 61131378109 $1.15
only in conjunction with
-- Snap-in receptacle 2.5 with cable 0,5-1,0 MM² 1 61130007449 $2.07
-- Snap-in receptacle 2.5 with cable 1,0-2,5 MM² 1 61130007450 $2.32
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
