3' E36 318ti Glove box

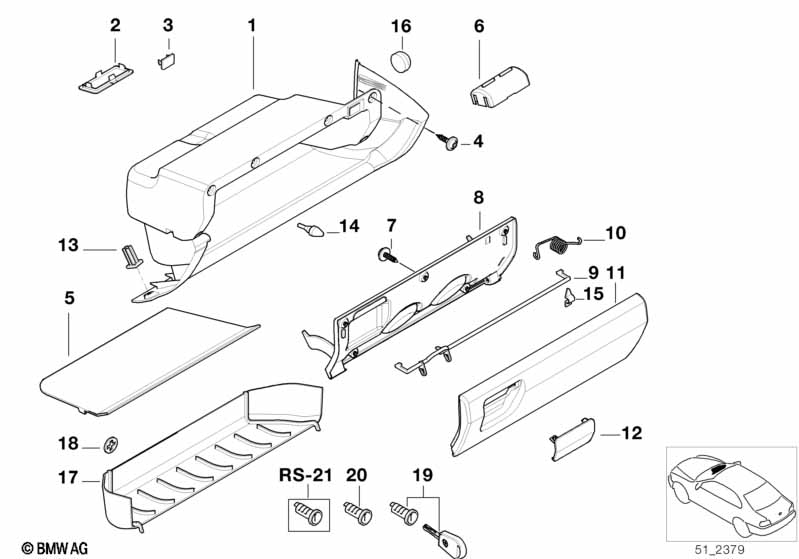

Glove box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Glove box housing SANDGRAU 1 51168186059 ENDED
01 Glove box housing ANTHRAZIT 1 51168186060
01 Glove box housing ANTHR./ANTHR. 1 51168197959 ENDED, +core
01 Glove box housing KLASSISCHROT 1 51168226026 ENDED, +core
01 Glove box housing ANTHR./ASCOTGR. 1 51168240130 ENDED, +core
ONLY APPLIES TO PERSONAL-CHOICE
01 Glove box housing SANDGR./ANTHR. 1 51168197955 ENDED, +core
01 Glove box housing SANDGR./SANDGR. 1 51168197956 ENDED
01 Glove box housing SANDGR./KGSBLAU 1 51168197957 ENDED
01 Glove box housing SANDGR./KAR-ROT 1 51168197958 ENDED
01 Glove box housing ANTHR./ANTHR. 1 51168197959 ENDED, +core
01 Glove box housing ANTHR./SANDGRAU 1 51168197960 ENDED
01 Glove box housing ANTHR./KGS-BLAU 1 51168197961 ENDED
01 Glove box housing ANTHR./KARM-ROT 1 51168197962 ENDED
01 Glove box housing ANTHR./LEUCHTGR 1 51168197963 ENDED
01 Glove box housing ANTHR./ROT 1 51168197964 ENDED
01 Glove box housing SANDGR./AUBERGI 1 51168197965 ENDED
01 Glove box housing SANDGR./MOOSGR. 1 51168197966 ENDED
01 Glove box housing ANTHR./AUBERGIN 1 51168197967 ENDED
01 Glove box housing ANTHR/MOOSGRUEN 1 51168197968 ENDED
01 Glove box housing SANDGR/SANDG-HE 1 51168197969 ENDED
01 Glove box housing SANDGR./VIOLETT 1 51168197970 ENDED
01 Glove box housing ANTHR./SANDG-HE 1 51168197971 ENDED
01 Glove box housing ANTHR./VIOLETT 1 51168197972 ENDED, +core
02 Cover SANDGRAU 1 51168186088 $0.65 ENDED
02 Cover ANTHRAZIT 1 51168186089 $0.65 ENDED
03 Cover SANDGRAU 1 51168186086 $0.48 ENDED
03 Cover ANTHRAZIT 1 51168186087 $0.64 ENDED
04 Sheet metal screw ST4,2X19-U2-C-H X 07119904176 $0.25
05 Glove box bottom panel 1 51168146679
06 Floor lamp cover 1 51458166683 $4.60
07 Fillister head self-tapping screw X 51168172604 $0.27
07 Fillister head screw 3.5X10MM 5 09/1996 51168227564 $0.33
08 Cover 1 09/1996 51168146677
only in conjunction with
-- Supporting bracket 3 09/1996 51168195278 $0.32
-- Supporting bracket 1 09/1996 51168200129 $0.35
08 Cover 1 09/1996 51168222500
09 Rod 1 09/1996 51168146676 ENDED
09 Rod 1 09/1996 51168222502
10 Spring 1 09/1996 51168146470 $0.60
10 Spring 1 09/1996 02/1997 51168222498 $1.47
10 Spring 1 02/1997 51168238496
11 Cover glove box lower SANDGRAU 1 09/1996 51168186067 ENDED
11 Cover glove box lower ANTHRAZIT 1 09/1996 51168186068
11 Glove box lid SANDGRAU 1 09/1996 51168222490 ENDED
11 Glove box lid ANTHRAZIT 1 09/1996 51168222491
12 Flap 1 51168146466 $9.93
12 Lockable flap 1 51168218167 $29.10
13 Plug-in nut X 51458191429 $0.56
14 Rubber buffer 2 51451917675 $0.50
15 Supporting bracket 3 51168195278 $0.32
15 Supporting bracket 1 51168200129 $0.35
16 Cap SCHWARZ 1 51161949793 $0.42
16 Cap SANDGRAU 1 51168191949 $0.19
17 Insert PAPPEL NATUR 1 51162264015 ENDED, +core
17 INSERT, birchwood ANTHRAZIT 1 51162428637 ENDED, +core, NoS
17 Insert NUSSBAUM 1 09/1996 51162493986 ENDED, +core
18 Spring nut 2 07129926325 $0.11
19 Rep.kit f lock cylinder 1 51169061388 $36.91
20 Rep.kit f lock cylinder 1 51169061388 $36.91
21 Rep.kit f lock cylinder 1 51169061388 $36.91
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • NoS = No Stock (Part, central, not in stock.)
