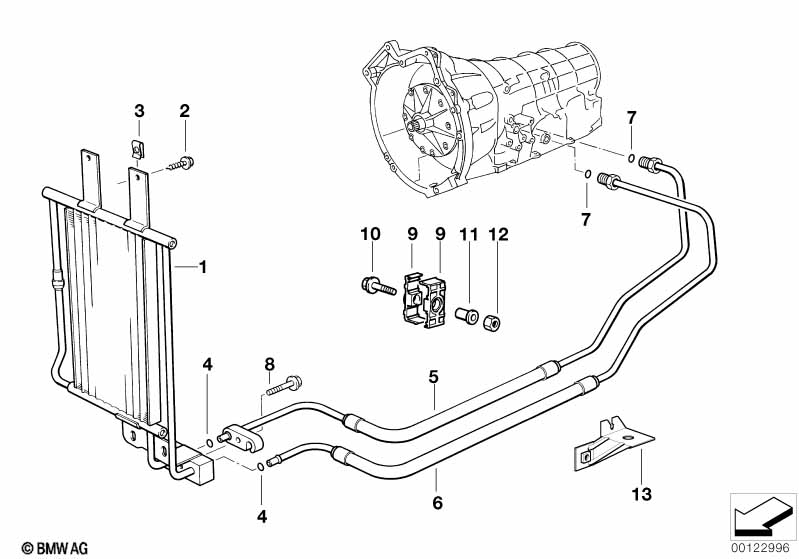

3' E36 318ti Transmission oil air cooling

Transmission oil air cooling
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooler-plug type connection 1 17201728770 $296.10
02 Hex head screw ST4,8X22-C-Z2 4 07119916944 $0.25
04 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
05 Oil cooling pipe inlet A4S 310R 1 17221439747 $110.18 +core
06 Oil cooling pipe outlet A4S 310R 1 17221439748 $85.25 +core
07 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
08 Screw M8X28-Z3 1 17227555715 $0.78
09 Bracket oil pipe 4 17201712210 $1.02
10 Hex bolt M6X30-8.8-ZNS3 1 07119904116 $0.38
11 Spacer sleeve D6 2 17227798686 $3.32
12 Hex nut BM6-8-ZNFE SW 1 07129905470 $0.29
13 Bracket oil pipe 1 17221433006 $4.58
Notes
  • +core = plus core charge (possibility of a return of the old part)
