Z3 E36 Z3 1.9 Exterior trim / grill

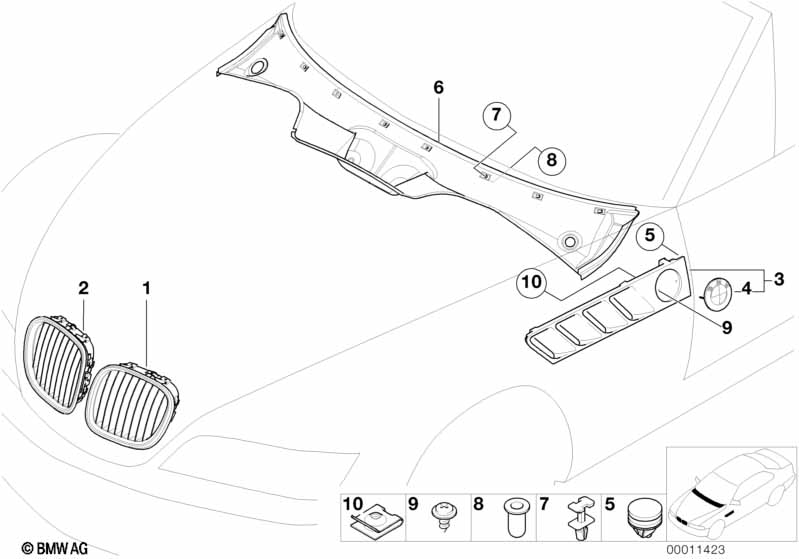

Exterior trim / grill
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Grille left 1 51138397503 $75.07
01 Grille, front, left CHROM 1 51138412949 $97.59
02 Grille right 1 51138397504 $75.07
02 Grille, front, right CHROM 1 51138412950 $97.59
03 Grille right 1 51130031434 $86.63
03 Grille left 1 51130031435 $86.63
For vehicles with
James Bond edition

=Yes
03 Grille, right, primed, chrome insert 1 51130031456 $97.59
03 Grille, right, primed, chrome insert 1 51138400172 $101.61 ENDED, +core
For vehicles with
Chrome-Line/SA345

=Yes
03 Grille, left, primed, chrome insert 1 51130031457 $97.59
03 Grille, right, primed, chrome insert 1 51138400172 $101.61 ENDED, +core
04 Trunk lid badge 2 51141970248 $30.43
05 Clip X 51138399231 $4.87
06 Cover 1 09/1999 51318397500 $81.50 ENDED
06 Cover 1 51318413095 $89.56
07 Expanding rivet 8 51718195811 $0.65
08 Grommet D=9MM 8 51718186501 $0.28
09 Fillister head self-tapping screw ST4,2X13-Z2 2 07119907939 $0.11
10 Body nut ST4,2-2 2 06/2002 07129925730 $0.11 ENDED
10 Body nut ST4,2-2 2 07129904245 $0.25
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
