Z3 E36 Z3 1.9 Glove box

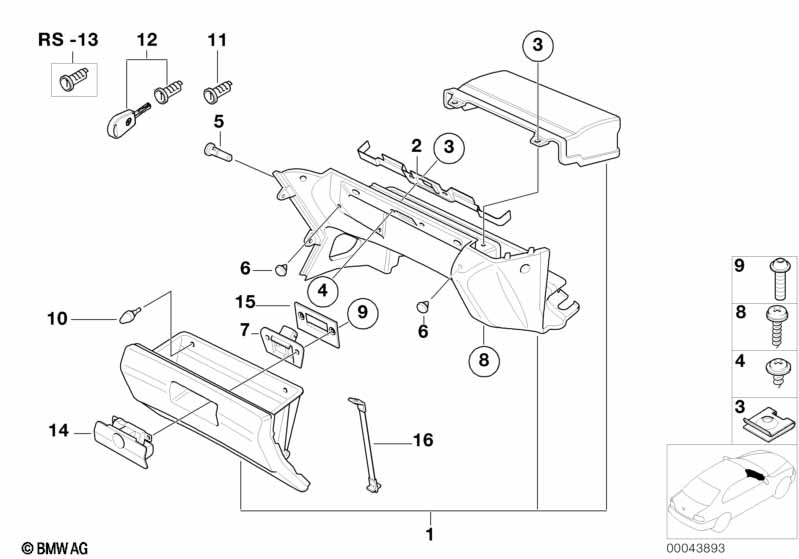

Glove box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Glove box with trim panel SCHWARZ 1 51458399610 $465.54
01 Glove box with trim panel BEIGE 1 51458399612 $465.54
02 Catch 1 51458397597 $7.75
03 C-clip nut 2 07146988451 $0.36
04 Fillister head self-tapping screw ST4,2X13-Z2 2 07119907939 $0.11
05 Pin 2 51458397589 $5.62
06 Stop buffer 2 51178153364 $0.32
07 Catch upper part 1 51161849472 $11.28
08 Sheet metal screw 3 06/2002 07119907803 $0.38 ENDED
08 Sheet metal screw ST4,2X13 SW 3 06/2002 07119904187 $0.29 ENDED
08 Sheet metal screw ST4,2X13 SW 3 07119904186 $0.18
09 Fillister head screw M5X12-Z3-ZN 2 07119906816 $0.18
10 Rubber buffer 2 51451917675 $0.50
11 Rep.kit f lock cylinder 1 51169061388 $36.91
only in conjunction with
-- Catch lower part 1 51161946513 $29.20
12 Rep.kit f lock cylinder 1 51169061388 $36.91
only in conjunction with
-- Catch lower part 1 51161946513 $29.20
13 Rep.kit f lock cylinder 1 51169061388 $36.91
only in conjunction with
-- Catch lower part 1 51161946513 $29.20
14 Catch lower part 1 51161946513 $29.20
15 Cover 1 51168410477 $9.99
16 Catch 2 51168400296 $6.00 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
