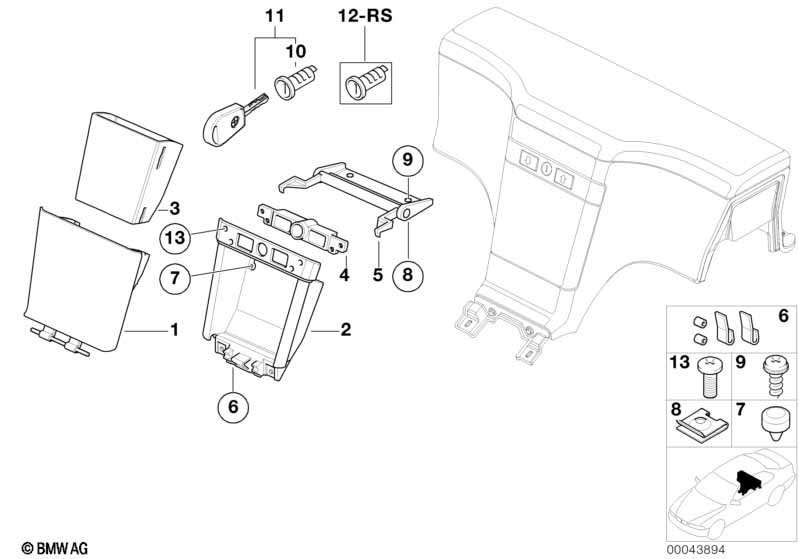

Z3 E36 Z3 1.9 Hinged compartment

Hinged compartment
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hinged compartment SCHWARZ 1 51168407137 $54.83
01 Hinged compartment BEIGE 1 51168407138 $54.83
02 Frame BEIGE 1 51168413499 $46.52 +core
02 Frame SCHWARZ 1 51168413500 $46.52
03 Insert 1 51168399071 $36.91
04 Support f oddments box lock 1 51168399068 $55.04
05 Locking mechanism 1 51168399070 $15.73
06 Diverse small parts f hinged compartment 1 51168399078 $22.09
07 Stop buffer 2 51168213960 $2.56
08 Body nut ST4,2-3-ZNS3 2 07129904221 $0.25
08 Plug-in nut M5 2 46637651465 $1.29
09 Fillister head self-tapping screw ST4,2X16-Z1-SW 2 06/2002 07119900672 $0.18 ENDED
09 Sheet metal screw ST4,2X16MM 2 07119904172 $0.25
10 Rep.kit f lock cylinder 1 51169061388 $36.91
only in conjunction with
-- Support f oddments box lock 1 51168399068 $55.04
11 Rep.kit f lock cylinder 1 51169061388 $36.91
only in conjunction with
-- Support f oddments box lock 1 51168399068 $55.04
12 Rep.kit f lock cylinder 1 51169061388 $36.91
only in conjunction with
-- Support f oddments box lock 1 51168399068 $55.04
13 Fillister head screw M4X12 4 07119900692 $1.80
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
