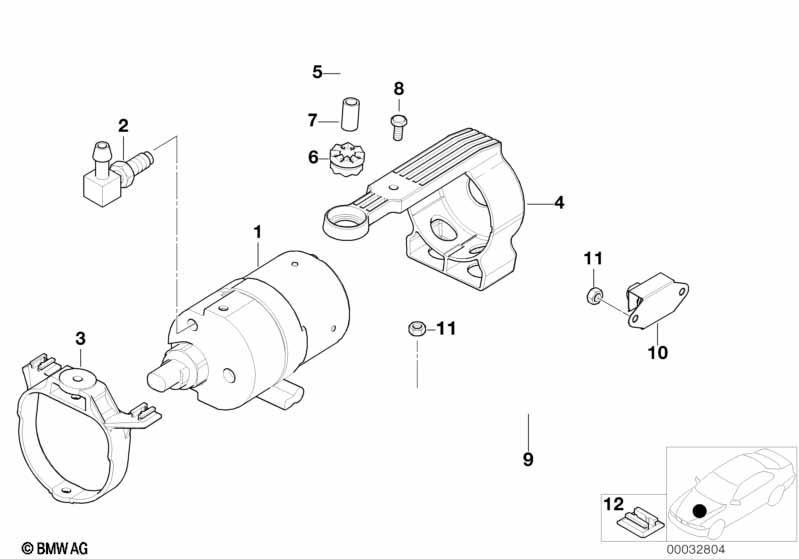

Z3 E36 Z3 2.5 DSC compressor/senors/mounting parts

DSC compressor/senors/mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Compressor DSC 1 09/2000 34511165905 $641.21
02 Angle piece 1 09/2000 34511164464 $12.13
03 Bracket f compressor 1 09/2000 34511165167 $3.70
04 Supporting part 1 09/2000 34511165168 $7.03
05 Hex bolt with washer M6X35 ZNS3 2 09/2000 07146971298 $0.82
06 Rubber Mounting 3 09/2000 34511164894 $1.83
07 Spacer sleeve ZNS3 1 09/2000 34506781284 $8.16
08 Hex bolt with washer M6X12-U1-8.8 1 09/2000 07119904517 $0.36
08 Hex bolt with washer M6X12-U1-ZNS3 1 09/2000 07119903843 $0.53 ENDED
09 Speed sensor 1 09/2000 34526754289 $537.48 ENDED
09 Speed sensor 1 09/2000 34526864094
10 Accelerating sensor 1 09/2000 37146781405 $102.03
11 Hex nut M6 4 09/2000 07119922824 $0.09 ENDED
11 Hex nut M6-8-ZNNIV SI 4 09/2000 07119905543 $0.38
12 Bracket, plug connection white 1 09/2000 61131378997 $0.87
Notes
  • ENDED = the part has been discontinued (no longer available).
