Z3 E36 Z3 1.8 Drive shaft-cent.bearing-universal joint

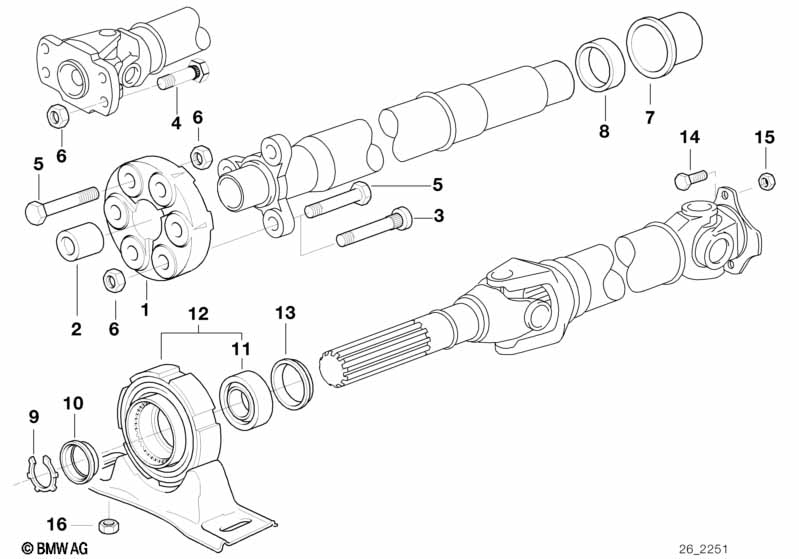

Drive shaft-cent.bearing-universal joint
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Universal joint LK=78MM/D=110MM 1 26111227410 $100.13
LK = bolt hole
02 Centering sleeve 1 26117526611 $11.32
05 Hex bolt M12X1,5X58-ZNS3 6 26117523709 $2.73 ENDED
06 Self-locking hex nut M12X1,5-10-PHR 6 12/2004 07129900047 $0.62
07 Threaded ring with clamp-ring 1 26117514037 $12.52
08 Threaded ring with clamp-ring 1 26117514037 $12.52
09 Lock Ring 1 26123648156 $0.98
10 Dustcover plate 1 26111226552 $2.27
11 Grooved ball bearing D=55/D=30 1 26121225071 $26.16
12 Center Mount 1 26121229089 $69.02
13 Dustcover plate 1 26111226553 $2.27
14 Knurled bolt M10X25 4 26111226478 $1.50 ENDED
14 Knurled bolt M10X25 4 26111206718 $2.18
15 Hex nut with ribs M10/SW16 4 26111227843 $0.75
only in conjunction with
-- Balance weight 2,3 GRAMM/SW16 X 26101229501 $3.50
if necessary
-- Balance weight 1,4 GRAMM/SW16 X 26101229518 $3.50
if necessary
16 Flange nut with washer M8-8-ZNS3 2 26117574872 $0.80
Notes
  • ENDED = the part has been discontinued (no longer available).
