Z3 E36 Z3 1.8 Rear axle support/wheel suspension

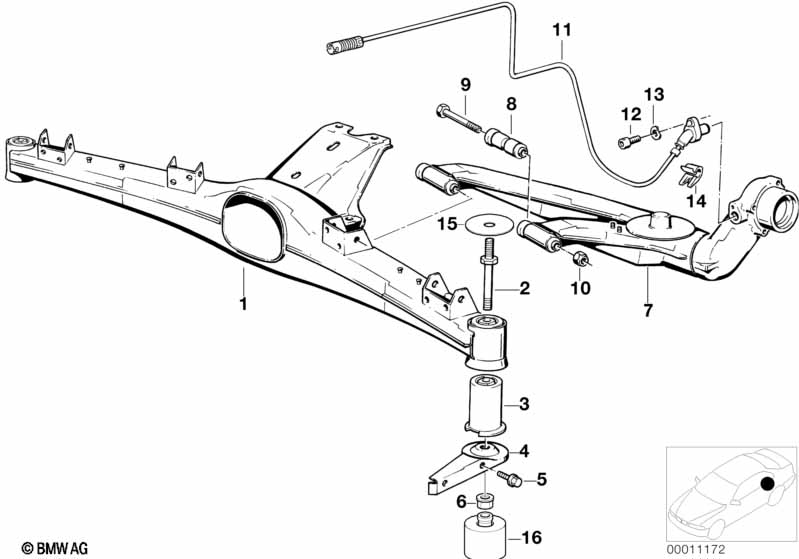

Rear axle support/wheel suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear axle carrier 1 33311090957 $1222.84
02 Threaded bolt 2 33321090951 $5.11
03 Rubber Mounting 2 33311090946 $54.46
04 Push rod left 1 33321091589 $33.91
04 Push rod right 1 33321091590 $33.91
05 Inner hex bolt M8X22 4 33311129676 $1.44 ENDED
06 Collar nut M14X1,5 2 33331126136 $1.93
07 Trailing arm, left 1 33321091151 $919.56 +core
07 Trailing arm, right 1 33321091152 $919.56 +core
08 Set rubber mounting eccentric D=30MM 2 33329058822 $33.38
08 Set rubber mounting D=30MM 2 33329061945 $26.77
09 Hex bolt M12X1,5X90 4 33321136406 $10.69
10 Self-locking hex nut M12X1,5-10-PHR 4 07129900047 $0.62
11 Pulse generator, ABS 2 06/1996 34521164643 $121.54 ENDED
11 Pulse generator, ABS 2 06/1996 34521164474 +core
For vehicles with
Dynamic stability control

S210A=Yes
11 Pulse generator, ABS 2 06/1996 34521164643 $121.54 ENDED
11 Pulse generator, ABS 2 06/1996 34521164474 +core
12 ISA screw M6X16-8.8-ZNNIV 2 07129905536 $0.64
13 Wave washer B6 2 07119932072 $0.09 ENDED
14 Cable clamp 6 33181182534 $0.25
15 Stopper 70MM 2 33311092183 $0.76
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
